At your service, master!

One of the most important lessons that I had to learn in my job is that you have to be aware of the client. As a service provider, it is my duty to satisfy my client’s needs – and without knowing him, I will not be able to succeed. In this blog post I describe some insights that helped me to gain a better understanding of my clients.

The main connection between the service provider and his client is the communication between them. In an ideal world, the two parties would be able to understand each other perfectly, however, humans and their language are fallible and to me, this seems to be the root of most problems. Of course, both parties are responsible, nevertheless, the service provider should not only deal with his own defeciencies, but also with his client’s, in order to attract and keep clients. Next, I will list five instructions that can reduce or sometimes even prevent the incomprehension in the communication.

Be prepared

This is maybe the clearest rule: Before meeting a client, you should know the basics of the domain he is working in and of the problem he wants to solve. It is not the client’s job to explain his request, but rather the service provider’s job to comprehend it. Besides, if a client feels understood, he will also feel that you can solve his problem – and at that stage this matters more than whether you can actually solve his problem.

Be attentive

You and your client are different persons and, as a result, have a different understanding of the same things. Your client might quickly slur over some little details in a software he wants, so you could assume that they are of no importance – but you will be unpleasantly surprised when it turns out to be a critical aspect of the program. And this is not necessarily a flaw in the customer’s communication: Maybe to a domain expert – and your customer might be one – the importance of these details is totally obvious.

Furthermore, sometimes even language will lead you nowhere. For example, people do not always realize why a system is hard to use or where they make mistakes and hence cannot tell you about it, but by watching them you might find the problems. In such a situation, it is crucial to grasp not only the words the client is saying, but also other signals he is emitting.

Be without bias

As soon as I start listening to a client’s problem, sometimes I can literally watch myself constructing a solution in my head. I create a mental model composed of the components the customer is talking about, think about their relationships – and suddenly, I find myself thrown a curve because the client added a thought that objects my conception.

Of course, a model can improve the understanding of a client’s demands, however, one has to constantly question the validity of the model and – in case it is disproved – one must drop it without hesitation. Do not become attached to a model just because it is so elegant – in most cases, you will be betrayed. In contrast, it will probably become easier to adapt your mental models if you stay open-minded.

And even if your view seems to suit the customer’s requirements perfectly, you should hesitate to present it to him, you should not ask for confirmation early on. In fact, the better the concept seems, the more careful you should be: You might lead your client into thinking that it is a adequate solution, and by focusing on the conformity between the concept and his problem, you and your client may fail to see flaws.

Instead, you should try to ditch your assumptions, try to listen without bias. You still have to prepare yourself before you meet your client, but you should be willing to scrutinize your knowledge and to discard incorrect information.

Be concrete

The human language is a wonderful medium, but unfortunately terribly inaccurate. If, instead of writing, you can talk with your customer, you should usually choose the latter. Even better, if you can meet him in person, do it – there are so many more options to communicate if you are in one room that you will almost surely benefit from it.

For instance, if your client wishes a feature with some user interface, you can sketch it or build a paper prototype; you could even prepare a real prototype consisting only of the user interface. This allows your customer to play with it and facilitates the communication. And do not be abstract, do not fill your widgets with texts as “Lorem ipsum” – it does not matter if the content is made-up, but it should be realistic.

User interface design is a neat example since it is graphical, nevertheless, you can apply this principle to other tasks. It does not matter if you talk about a processes, some architecture, domain models or other structures: Even though most of them have no inherent graphical representation, it is usually easier to describe them graphically then by using text.

Seek for the why, not the what

Often, I tend to ask my clients about the problem they wish to solve – I ask what they wish to solve, not why. Usually, this is sufficient; he knows his situation and is able to express his needs. Unfortunately, it also happens that albeit the customer’s problem is solved according to his description, his wants are not satisfied – and the reason for this is that even he did not know what he actually needed. Even worse, sometimes I get caught by the “how”, that is, I quickly find a nice solution for some parts of a client’s problem, so I stick to it, maybe even implement it – and in the end I realize that it actually prevents me from solving the complete problem.

Hence, it is not only important to find out what your client wants to achieve, but also why he wants to achieve it, you have to understand his motivation. This can enable you to correct your client’s mistakes and to lead him to the question he actually wants to answer. Furthermore, this is a great handle to control the effort of a project: It becomes easier to identify indispensable core functionality and to find features whose usefulness is questionable, and hence, one can communicate with the client if some of the latters might be dropped. Simon Sinek gave an interesting TED talk to a similar topic found here.

Conclusion

Understanding your customers is difficult, but not impossible. I think that actively directing the attention at your counterpart, being open for input and questioning your assumptions and knowledge can strongly improve the communication with your clients.

Drawing Graphs with Circular Vertices

Graph drawing is a common algorithmical problem applicable to many fields besides software; common examples include the analysis of social networks or the visualization of biological graphs. In this article, I describe a simple extension to a standard force-directed algorithm that allows to draw graphs with circular vertices.

Force-directed algorithms or spring embedders place vertices by assigning forces according to the edges connecting the vertices. These algorithms are intuitive, able to yield solutions of high quality in a reasonable amount of time and can be applied to most kinds of graphs. For conciseness, most fundamentals will be omitted, a basic knowledge of these kind of algorithms is presumed.

Original algorithm

We employ a standard force-directed algorithm as a basis, that is, the algorithm of Fruchterman and Reingold. It assumes vertices to be point-shaped and defines two forces for influencing vertices: An attractive force fattr that pulls connected vertices towards each other and a repulsive force frep that disperses the vertices by repelling them from each other. The absolute value of the forces can be computed as follows:

  • fattr(u, v) = k2 / distance(u, v)
  • frep(u, v) = distance(u, v)2k

The directions of the forces are determined from the positions of the vertices given as two-dimensional vectors; for two vertices, the direction of repulsion and attraction is inverse. The complete force affecting a vertex v is computed by adding the repulsive forces for all other vertices and the attractive forces for all connected vertices together. As shown in the following figure, k describes the distance between two connected vertices whose attractive and repulsive forces are in equilibrium.

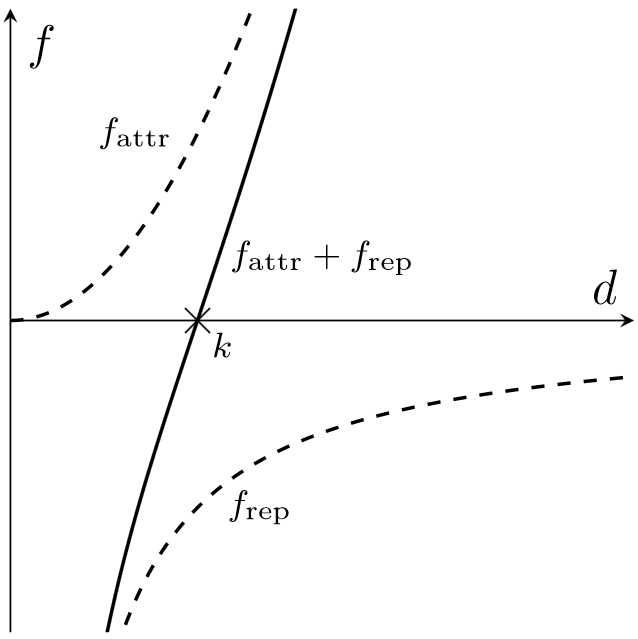

original-forces

The factor k is a constant and usually chosen according to the area of the drawing. If the distance between two vertices shrinks towards zero, the repulsive force grows infinitely. Similarly, for two connected vertices the attractive force grows with the distance between them. More information about the original algorithm can be found in the paper “Graph Drawing by Force-directed Placement“.

This approach works fine for point-shaped vertices, however, it cannot deal with two-dimensional vertices: It cannot ensure that vertices do not overlap, but only prevents their centers from touching. Next, I will present a slight modification of the algorithm in order to enable the handling of circular vertices.

Modified algorithm

Our goal is to ensure a minimum distance between all vertices so that their borders can neither touch nor overlap. Additionally, in contrast to the original algorithm where the distance between vertices depends on a constant, the distance of vertices should be determined according to the size of the vertices, that is, smaller vertices may be placed more near to each other than larger vertices.

As illustrated in the next figure, one way to meet the first requirement is to adjust the force functions. If the repulsive force grows infinitely when dwindling to a certain distance, this distance poses a lower bound for the distance of two vertices.

redefined-forcesFurthermore, in order to fulfill the second requirement, the minimum and preferred distance functions are parameterized with the radii of the vertices as follows:

  • dmin(u, v) = ru + rv + bmin · (cmin min(ru, rv) + cmax max(ru, rv))
  • dpref(u, v) = ru + rv + bpref · (cmin min(ru, rv) + cmax max(ru, rv))

The addition of the radii ru and rv ensures that vertices corresponding to the minimum distance never overlap. The constant bx controls the size of the buffer between two vertices subject to their radii as shown in the figure below. Finally, the constants cmin and cmax weigh the influence of the radii; this allows us to place a small vertex more near to a large vertex than another large vertex. The factors bx, cmin and cmax should be positive and cmin and cmax should add up to one.

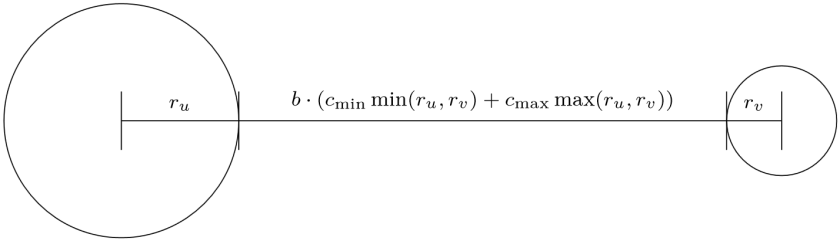

preferred-distanceOn this basis the force functions can be redefined. Let dactual(u, v) be the actual distance between two vertices u and v and let dX(u, v) be the distance normalized by the minimum distance:

  • dactual(u, v) = |pos(v) – pos(u)|
  • dX(u, v) = dX(u, v) – dmin(u, v)

This results in the following force functions, which comply with the criteria specified before:

frep fattr

Finally, this leads us to the pseudocode of the complete algorithm for layouting a graph G = (V, E):

procedure Layout(G = (V, E))
    initialize temperature t
    for i = 1 to n do
        for each v in V do
            disp(v) = 0
            for each u in V do
                if u ≠ v then
                    Δ = pos(v) - pos(u)
                    disp(v) = disp(v) + Δ/|Δ| · f_rep(u, v)
        for each (u, v) in E do
            Δ = pos(v) - pos(u)
            disp(v) = disp(v) - Δ/|Δ| · f_attr(u, v)
            disp(u) = disp(u) + Δ/|Δ| · f_attr(u, v)
        for each v in V do
            pos(v) = pos(v) + disp(v)/|disp(v)| · min(|disp(v)|, t)
        t = cool(t)

Applications

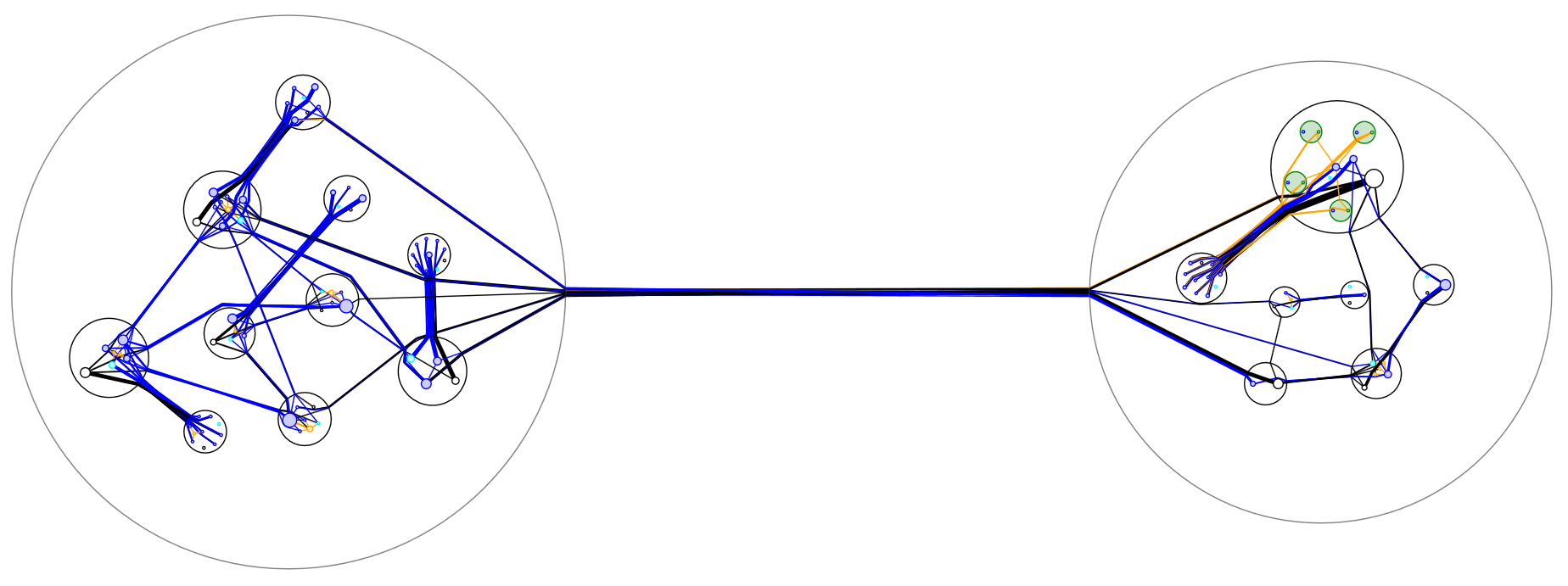

The drawings produced by this algorithm are not perfect, however, it is possible to employ it in a more complex context. For example, we used it to visualize the structure of software; an example can be seen in the figure below. The techniques behind this other layout algorithm are described in detail here.

software-project

Declare war on your software

If we believe Robert Greene, life is dominated by fierce war – and he does not only refer to obvious events such as World War II or the Gulf Wars, but also to politics, jobs and even the daily interactions with your significant other.

The book

Left aside whether or not his notion corresponds to reality, it is indeed possible to apply many of the strategies traditionally employed in warfare to other fields including software development. In his book The 33 Strategies of War, Robert Greene explains his extended conception on the term war, which is not restricted to military conflicts, and describes various methods that may be utilized not only to win a battle, but also to gain advantage in everyday life. His advice is backed by detailed historic examples originating from famous military leaders like Sun Tsu, influential politicans like Franklin D. Roosevelt and even successful movie directors like Alfred Hitchcock.

Examples

While it is clear that Greene’s methods are applicable to diplomacy and politics, their application in the field of software development may seem slightly odd. Hence, I will give two specific examples from the book to explain my view.

The Grand Strategy

Alexander the Great became king of Macedon at the young age of twenty, and one of his first actions was to propose a crusade against Persia, the Greek’s nemesis. He was warned that the Persian navy was strong in the Mediterranean Sea and that he should strengthen the Greek navy so as to attack the Persians both by land and by sea. Nevertheless, he boldly set off with an army of 35,000 Greeks and marched straight into Asia Minor – and in the first encounter, he inflicted a devastating defeat on the Persians.

Now, his advisors were delighted and urged him to head into the heart of Persia. However, instead of delivering the finishing blow, he turned south, conquering some cities here and there, leading his army through Phoenicia into Egypt – and by taking Persia’s major ports, he disabled them from using their fleet. Furthermore, the Egyptians hated the Persians and welcomed Alexander, so that he was free to use their wealth of grain in order to feed his army.

Still, he did not move against the Persian king, Darius, but started to engage in politics. By building on the Persion government system, changing merely its unpopular characteristics, he was able to stabilize the captured regions and to consolidate his power. It was not before 331 B. C., two years after the start of his campaign, that he finally marched on the main Persian force.

While Alexander might have been able to defeat Darius right from the start, this success would probably not have lasted for a long time. Without taking the time to bring the conquered regions under control, his empire could easily have collapsed. Besides, the time worked in his favor: Cut off from the Egyptian wealth and the subdued cities, the Persian realm faltered.

One of Greene’s strongest points is the notion of the Grand Strategy: If you engage in a battle which does not serve a major purpose, its outcome is meaningless. Like Alexander, whose actions were all targeted on establishing a Macedonian empire, it is crucial to focus on the big picture.

It is easy to see that these guidelines are not only useful in warfare, but rather in any kind of project work – including software projects. While one has to tackle the main tasks at some point, it is important to approach it reasoned, not rashly. If anaction is not directed towards the aim of the project, one will be distracted and endager its execution by wasting resources.

The Samurai Musashi

Miyamoto Musashi, a renowned warrior and duellist, lived in Japan during the late 16th and the early 17th century. Once, he was challenged by Matashichiro, another samurai whose father and brother had already been killed by Musashi. In spite of the warning of friends that it might be a trap, he decided to oppose his enemy, however, he did prepare himself.

For his previous duels, he had arrived exorbitantly late, making his opponents lose their temper and, hence, the control over the fight. Instead, this time he appeared at the scene hours before the agreed time, hid behind some bushes and waited. And indeed, Matashichiro arrived with a small troop to ambush Musashi – but using the element of surprise, he could defeat them all.

Some time later, another warrior caught Musashi’s interest. Shishido Baiken used a kusarigama, a chain-sickle, to fight and had been undefeated so far. The chain-sickle seemed to be superior to swords: The chain offered greater range and could bind an enemy’s weapon, whereupon the sickle would deal the finishing blow. But even Baiken was thrown off his guard; Musashi showed up armed with a shortsword along with the traditional katana – and this allowed him to counter the kusarigama.

A further remarkable opponent of Musashi was the samurai Sasaki Ganryu, who wore a nodachi, a sword longer than the usual katanas. Again, Musashi changed his tactics: He faced Ganryu with an oar he had turned into a weapon. Exploiting the unmatched range of the oar, he could easily win the fight.

The characteristic that distinguished Musashi from his adversaries most was not his skill, but that he excelled at adapting his actions to his surroundings. Even though he was an outstanding swordsman, he did not hesitate to follow different paths, if necessary. Education and training facilitate becoming successful, but one has to keep an open mind to change.

Relating to software development, it does not mean that we have to start afresh all the time we begin a new project. Nevertheless, it is dangerous if one clings to outdated technologies and procedures, sometimes may be helpful to regard a situation like a child, without any assumptions. In this manner, it is probably possible to learn along the way.

Summary

Greene’s book is a very interesting read and even though in my view one should take its content with a pinch of salt, it is a nice opportunity to broaden one’s horizon. The book contains far more than I addressed in this article and I think most of its findings are indeed in one way or another applicable to everyday life.

Creating a GPS network service using a Raspberry Pi – Part 2

In the last article we learnt how to install and access a GPS module in a Raspberry Pi. Next, we want to write a network service that extracts the current location data – latitude, longitude and altitude – from the serial port.

Basics

We use Perl to write a CGI-script running within an Apache 2; both should be installed on the Raspberry Pi. To access the serial port from Perl, we need to include the module Device::SerialPort. Besides, we use the module JSON to generate the HTTP response.

use strict;
use warnings;
use Device::SerialPort;
use JSON;
use CGI::Carp qw(fatalsToBrowser);

Interacting with the serial port

To interact with the serial port in Perl, we instantiate Device::SerialPort and configure it according to our hardware. Then, we can read the data sent by our hardware via device->read(…), for example as follows:

my $device = Device::SerialPort->new('...') or die "Can't open serial port!";
//configuration
...
($count, $result) = $device->read(255);

For the Sparqee GPSv1.0 module, the device can be configured as shown below:

our $device = '/dev/ttyAMA0';
our $baudrate = 9600;

sub GetGPSDevice {
 my $gps = Device::SerialPort->new($device) or return (1, "Can't open serial port '$device'!");
    $gps->baudrate($baudrate);
    $gps->parity('none');
    $gps->databits(8);
    $gps->stopbits(1);
    $gps->write_settings or return (1, 'Could not write settings for serial port device!');
    return (0, $gps);
}

Finding the location line

As described in the previous blog post, the GPS module sends a continuous stream of GPS data; here is an explanation for the single components.

$GPGSA,A,3,17,09,28,08,26,07,15,,,,,,2.4,1.4,1.9*.6,1.7,2.0*3C
$GPRMC,031349.000,A,3355.3471,N,11751.7128,W,0.00,143.39,210314,,,A*76
$GPGGA,031350.000,3355.3471,N,11751.7128,W,1,06,1.7,112.2,M,-33.7,M,,0000*6F
$GPGSA,A,3,17,09,28,08,07,15,,,,,,,2.6,1.7,2.0*3C
$GPGSV,3,1,12,17,67,201,30,09,62,112,28,28,57,022,21,08,55,104,20*7E
$GPGSV,3,2,12,07,25,124,22,15,24,302,30,11,17,052,26,26,49,262,05*73
$GPGSV,3,3,12,30,51,112,31,57,31,122,,01,24,073,,04,05,176,*7E
$GPRMC,031350.000,A,3355.3471,N,11741.7128,W,0.00,143.39,210314,,,A*7E
$GPGGA,031351.000,3355.3471,N,11741.7128,W,1,07,1.4,112.2,M,-33.7,M,,0000*6C

We are only interested in the information about latitude, longitude and altitude, which is part of the line starting with $GPGGA. Assuming that the first parameter contains a correctly configured device, the following subroutine reads the data stream sent by the GPS module, extracts the relevant line and returns it. In detail, it searches for the string $GPGGA in the data stream, buffers all data sent afterwards until the next line starts, and returns the buffer content.

# timeout in seconds
our $timeout = 10;

sub ExtractLocationLine {
    my $gps = $_[0];
    my $count;
    my $result;
    my $buffering = 0;
    my $buffer = '';
    my $limit = time + $timeout;
    while (1) {
        if (time >= $limit) {
           return '';
        }
        ($count, $result) = $gps->read(255);
        if ($count <= 0) {
            next;
        }
        if ($result =~ /^\$GPGGA/) {
            $buffering = 1;
        }
        if ($buffering) {
            my $part = (split /\n/, $result)[0];
            $buffer .= $part;
        }
        if ($buffering and ($result =~ m/\n/g)) {
            return $buffer;
        }
    }
}

Parsing the location line

The $GPGGA-line contains more information than we need. With regular expressions, we can extract the relevant data: $1 is the latitude, $2 is the longitude and $3 is the altitude.

sub ExtractGPSData {
    $_[0] =~ m/\$GPGGA,\d+\.\d+,(\d+\.\d+,[NS]),(\d+\.\d+,[WE]),\d,\d+,\d+\.\d+,(\d+\.\d+,M),.*/;
    return ($1, $2, $3);
}

Putting everything together

Finally, we convert the found data to JSON and print it to the standard output stream in order to write the HTTP response of the CGI script.

sub GetGPSData {
    my ($error, $gps) = GetGPSDevice;
    if ($error) {
        return ToError($gps);
    }
    my $location = ExtractLocationLine($gps);
    if (not $location) {
        return ToError("Timeout: Could not obtain GPS data within $timeout seconds.");
    }
    my ($latitude, $longitude, $altitude) = ExtractGPSData($location);
    if (not ($latitude and $longitude and $altitude)) {
        return ToError("Error extracting GPS data, maybe no lock attained?\n$location");
    }
    return to_json({
        'latitude' => $latitude,
        'longitude' => $longitude,
        'altitude' => $altitude
    });
}

sub ToError {
    return to_json({'error' => $_[0]});
}

binmode(STDOUT, ":utf8");
print "Content-type: application/json; charset=utf-8\n\n".GetGPSData."\n";

Configuration

To execute the Perl script with a HTTP request, we have to place it in the cgi-bin directory; in our case we saved the file at /usr/lib/cgi-bin/gps.pl. Before accessing it, you can ensure that the Apache is configured correctly by checking the file /etc/apache2/sites-available/default; it should contain the following section:

ScriptAlias /cgi-bin/ /usr/lib/cgi-bin/
<Directory "/usr/lib/cgi-bin">
    AllowOverride None
    Options +ExecCGI -MultiViews +SymLinksIfOwnerMatch
    Order allow,deny
    Allow from all
</Directory>

Furthermore, the permissions of the script file have to be adjusted, otherwise the Apache user will not be able to execute it:

sudo chown www-data:www-data /usr/lib/cgi-bin/gps.pl
sudo chmod 0755 /usr/lib/cgi-bin/gps.pl

We also have to add the Apache user to the user group dialout, otherwise it cannot read from the serial port. For this change to come into effect the Raspberry Pi has to be rebooted.

sudo adduser www-data dialout
sudo reboot

Finally, we can check if the script is working by accessing the page <IP address>/cgi-bin/gps.pl. If the Raspberry Pi has no GPS reception, you should see the following output:

{"error":"Error extracting GPS data, maybe no lock attained?\n$GPGGA,121330.326,,,,,0,00,,,M,0.0,M,,0000*53\r"}

When the Raspberry Pi receives GPS data, they should be given in the browser:

{"longitude":"11741.7128,W","latitude":"3355.3471,N","altitude":"112.2,M"}

Last, if you see the following message, you should check whether the Apache user was correctly added to the group dialout.

{"error":"Can't open serial port '/dev/ttyAMA0'!"}

Conclusion

In the last article, we focused on the hardware and its installation. In this part, we learnt how to access the serial port via Perl, wrote a CGI script that extracts and delivers the location information and used the Apache web server to make the data available via network.

Creating a GPS network service using a Raspberry Pi – Part 1

Using sensors is a task we often face in our company. This article series consisting of two parts will show how to install a GPS module in a Raspberry Pi and to provide access to the GPS data over ethernet. This guide is based on a Raspberry Pi Model B Revision 2 and the GPS shield “Sparqee GPSv1.0”. In the first part, we will demonstrate the setup of the hardware and the retrieval of GPS data within the Raspberry Pi.

Hardware configuration

The GPS shield can be connected to the Raspberry Pi by using the pins in the top left corner of the board.

Raspberry Pi B Rev. 2 (Source: Wikipedia)

Raspberry Pi B Rev. 2 (Source: Wikipedia)

The Sparqee GPS shield possesses five pins whose purpose can be found on the product page:

Pin Function Voltage I/O
GND Ground connection 0 I
RX Receive 2.5-6V I
TX Transmit 2.5-6V O
2.5-6V Power input 2.5-6V I
EN Enable power module 2.5-6V I

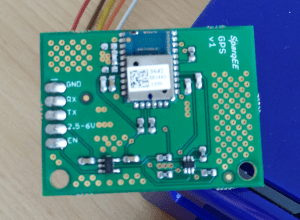

Sparqee GPSv1.0

Sparqee GPSv1.0

We used the following pin configuration for connecting the GPS shield:

GPS Shield Raspberry Pi Pin-Nummer
GND GND 9
RX GPIO14 / UART0 TX 8
TX GPIO15 / UART0 RX 10
2.5-6V +3V3 OUT 1
EN +3V3 OUT 17

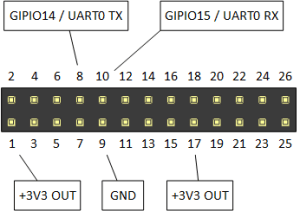

You can see the corresponding pin numbers on the Raspberry board in the graphic below. A more detailed guide for the functionality of the different pins can be found here.

Relevant pins of the Raspberry Pi

Relevant pins of the Raspberry Pi

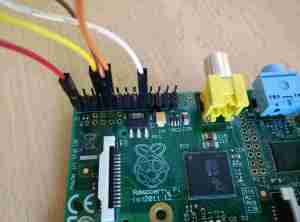

After attaching the GPS module, our Raspberry Pi looks like this:

Attaching the GPS shield to the Raspberry

Attaching the GPS shield to the Raspberry



GPS data retrieval

The Raspberry GPS communicates with the Sparqee GPS shield over the serial port UART0. However, in Raspbian this port is usually used as serial console, which is why we cannot directly access the GPS shield. To turn this feature off and activate the module, you have to follow these steps:

  1. Edit the file /boot/cmdline.txt and delete all parameters containing the key ttyAMA0:
    console=ttyAMA0,115200 kgdboc=ttyAMA0,115200

    Afterwards, our file contains this text:

    dwc_otg.lpm_enable=0 console=tty1 root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline rootwait

  2. Edit the file /etc/inittab and comment the following line out:
    T0:23:respawn:/sbin/getty -L ttyAMA0 115200 vt100

    Comments are identified by the hash sign; the result should look as follows:

    #T0:23:respawn:/sbin/getty -L ttyAMA0 115200 vt100

  3. Next, we have to reboot the Raspberry Pi:
    sudo reboot

  4. Finally, we can test the GPS module with Minicom. The baud rate is 9600 and the device name is /dev/ttyAMA0:
    sudo minicom -b 9600 -D /dev/ttyAMA0 -o


    If necessary, you can install Minicom using APT:

    sudo apt-get install minicom



    You can quit Minicom with the key combination strg+a followed by z.

If you succeed, Minicom will continually output a stream of GPS data. Depending on wether the GPS module attains a lock, that is, wether it receives GPS data by a satellite, the output changes. While no data is received, the output remains mostly empty.

$GPGGA,080327.199,,,,,0,00,,,M,0.0,M,,0000*59
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPRMC,080327.199,V,,,,,,,240314,,,N*42
$GPGGA,080328.199,,,,,0,00,,,M,0.0,M,,0000*56
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPRMC,080328.199,V,,,,,,,240314,,,N*4D
$GPGGA,080329.199,,,,,0,00,,,M,0.0,M,,0000*57
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPGSV,3,1,12,02,14,214,29,04,64,182,24,05,00,000,21,10,00,000,23*7E
$GPGSV,3,2,12,12,03,334,26,08,57,094,,23,52,187,,27,52,110,*76
$GPGSV,3,3,12,03,36,332,,09,32,128,,24,27,212,,17,26,350,*7B

Once the GPS module starts receiving a signal, Minicom will display more data as in the example below. If you encounter problems in attaining a GPS lock, it might help to place the Raspberry Pi outside.

$GPGSA,A,3,17,09,28,08,26,07,15,,,,,,2.4,1.4,1.9*.6,1.7,2.0*3C
$GPRMC,031349.000,A,3355.3471,N,11751.7128,W,0.00,143.39,210314,,,A*76
$GPGGA,031350.000,3355.3471,N,11751.7128,W,1,06,1.7,112.2,M,-33.7,M,,0000*6F
$GPGSA,A,3,17,09,28,08,07,15,,,,,,,2.6,1.7,2.0*3C
$GPGSV,3,1,12,17,67,201,30,09,62,112,28,28,57,022,21,08,55,104,20*7E
$GPGSV,3,2,12,07,25,124,22,15,24,302,30,11,17,052,26,26,49,262,05*73
$GPGSV,3,3,12,30,51,112,31,57,31,122,,01,24,073,,04,05,176,*7E
$GPRMC,031350.000,A,3355.3471,N,11741.7128,W,0.00,143.39,210314,,,A*7E
$GPGGA,031351.000,3355.3471,N,11741.7128,W,1,07,1.4,112.2,M,-33.7,M,,0000*6C

A detailed description of the GPS format emitted by the Sparqee GPSv1.0 can be found here. Probably the most important information, the GPS coordinates, is contained by the line starting with $GPGGA: In this case, the module was located at 33° 55.3471′ Latitude North and 117° 41.7128′ Longitude West at an altitude of 112.2 meters above mean sea level.

Conclusion

We demonstrated how to connect a Sparqee GPS shield to a Raspberry Pi and how to display the GPS data via Minicom. In the next part, we will write a network service that extracts and delivers the GPS data from the serial port.

Having a plan

As a software developer, I quickly learnt that having a plan is essential for the successful realization of a project. Of course, there are projects which seem to run by themselves – either because no problems occur or because their solution is trivial. However, the larger the project, the tighter the deadlines, the more you need a plan to retain control over it. And it is particularly easy to lose control over a project if you not only manage it, but also participate in its implementation.

A project leader is responsible for the outcome of a project. They have to keep track of its goals, must know its current state and how far it progressed. You can, for example, constantly prescind from present actions and problems and check them in order to find out if they bring you closer to your objective or if you are getting side-tracked. Useful techniques are time boxes as in the Pomodoro techniques: For a fixed time, you concentrate on a problem, and afterwards, you recapitulate your results and, if necessary, adjust your approach. Yet, this is probably not enough to reveal how far your project advanced – and for this purpose you can employ a plan.

Such a plan can show you the exact condition of a project: It will tell you which milestones are already reached, where you are at the moment and which tasks have to be tackled next – and most importantly, it will tell you if you are in time. Basically, a plan is a monitoring tool for a project. By molding the project according to the plan, it is possible to see wether everything is alright, to expose potential pitfalls and, in the worst case, to recognize early if the project fails.

Moreover, a plan can also improve the communication related to the project. On the one hand, you will be able to brief your clients on the course of the project. Even better, if you can publish your progress regularly in a form allowing your clients to verify what you did so far, you will create a feedback loop that helps you to meet the clients’ demands. On the other hand, a plan will give you a handle to communicate with the people involved in the project realization. The knowledge about the state of the project is spreaded, which will permit you to spend less time talking about the required actions and more talking about the actual solution.

How to plan

Now, I want to enumerate a few hints for constructing a plan. First, even though a plan is crucial for a project, it is not necessary to develop the perfect plan right from the start, and it is presumably disadvantageous to stick with it at all costs. Instead, it is completely fine to launch the project following a rough draft; you can adapt it to your needs anytime.

Next, you should think about the unit of time you use to organize a project. If its life span amounts to a few weeks, it might be appropriate to plan single days, but in case it covers several months or even years, you should not bother to deduce the duties for the last month before starting the project. However, you should keep in mind that you may adjust the granularity arbitrarily: You can, for example, plan the first few days of a project in detail, while you sketch later actions in terms of weeks and months. In this step, it is also important to identify possible deadlines which have to be met.

Furthermore, you have to divide the project into sub-goals that are easier to operationalize. Just like with time units, you do not need to split your project into equally sized tasks, but upcoming issues should be specified in higher detail. At this point, you must also estimate the resources required to solve the issues; this could be as simple as time or money, but also something more specific as hardware or software. If you have tight deadlines, it is vital to check if there are tasks blocking other tasks: They cannot be parallelized and hence, the required resource is not just time, but rather calendar time.

Finally, even if you are managing a project, you are probably not alone – and you should exploit that circumstance extensively. When you know that there is someone who is able to perform a task more efficiently, you should delegate it. This is not restricted to the actual work in the project, but also includes management tasks such as the estimation of efforts. By this means, you will distribute the knowledge about the project to your team and facilitate the take-over of responsibility if it becomes necessary. In fact, perhaps the best way to successfully lead a project is to render oneself superfluous.
