Remote development with PyCharm

PyCharm is a fantastic tool for python development. One cool feature that I quite like is its support for remote development. We have quite a few projects that need to interact with special hardware, and that hardware is often not attached to the computer we’re developing on.
In order to test your programs, you still need to run it on that computer though, and doing this without tool support can be especially painful. You need to use a tool like scp or rsync to transmit your code to the target machine and then execute it using ssh. This all results in painfully long and error prone iterations.
Fortunately, PyCharm has tool support in its professional edition. After some setup, it allows you do develop just as you would on a local machine. Here’s a small guide on how to set it up with an ubuntu vagrant virtual machine, connecting over ssh. It work just as nicely on remote computers.

1. Create a new deployment configuration

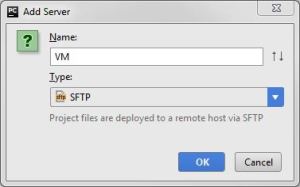

In the Tools->Deployment->Configurations click the small + in the top left corner. Pick a name and choose the SFTP type.
add_server

In the “Connection” Tab of the newly created configuration, make sure to uncheck “Visible only for this project”. Then, setup your host and login information. The root path is usually a central location you have access to, like your home folder. You can use the “Autodetect” button to set this up.

connection
For my VM, the settings look like this.

On the “Mappings” Tab, set the deployment path for your project. This would be the specific folder of your project within the root you set on the previous page. Clicking the associated “…” button here helps, and even lets you create the target folder on the remote machine if it does not exist yet.

2. Activate the upload

Now check “Tools->Deployment->Automatic Upload”. This will do an upload when you change a file, so you still need to do the initial upload manually via “Tools->Deployment->Upload to “.

3. Create a project interpreter

Now the files are synced up, but the runtime environment is not on the remote machine. Go to the “Project Interpreter” page in File->Settings and click the little gear in the top-right corner. Select “Add Remote”.

remote_interpreter
It should have the Deployment configuration you just created already selected. Once you click ok, you’re good to go! You can run and debug your code just like on a local machine.

Have fun developing python applications remotely.

TANGO – Making equipment remotely controllable

Usually hardwareTango_logo vendors ship some end user application for Microsoft Windows and drivers for their hardware. Sometimes there are generic application like coriander for firewire cameras. While this is often enough most of these solutions are not remotely controllable. Some of our clients use multiple devices and equipment to conduct their experiments which must be orchestrated to achieve the desired results. This is where TANGO – an open source software (OSS) control system framework – comes into play.

Most of the time hardware also can be controlled using a standardized or proprietary protocol and/or a vendor library. TANGO makes it easy to expose the desired functionality of the hardware through a well-defined and explorable interface consisting of attributes and commands. Such an interface to hardware –  or a logical piece of equipment completely realised in software – is called a device in TANGO terms.

Devices are available over the (intra)net and can be controlled manually or using various scripting systems. Integrating your hardware as TANGO devices into the control system opens up a lot of possibilites in using and monitoring your equipment efficiently and comfortably using TANGO clients. There are a lot of bindings for TANGO devices if you do not want to program your own TANGO client in C++, Java or Python, for example LabVIEW, Matlab, IGOR pro, Panorama and WinCC OA.

So if you have the need to control several pieces of hardware at once have a look at the TANGO framework. It features

  • network transparency
  • platform-indepence (Windows, Linux, Mac OS X etc.) and -interoperability
  • cross-language support(C++, Java and Python)
  • a rich set of tools and frameworks

There is a vivid community around TANGO and many drivers for different types of equipment already exist as open source projects for different types of cameras, a plethora of motion controllers and so on. I will provide a deeper look at the concepts with code examples and guidelines building for TANGO devices in future posts.
