Last night, an end-to-end test saved my live

but not with a song, only with an assertion failure. Okay, I’ll admit, this is not the only hyperbole in the blog title. Let’s set things right: The story didn’t happen last night, it didn’t even happen at night (because I’m not working night hours). In fact, it was a well-lit sunny day. And the test didn’t save my live. It did save me from some embarrassment, though. And spared a customer some trouble and hotfixing sessions with me.

The true parts of the blog title are: An end-to-end test reported an assertion failure that helped me to fix a bug before it got released. In other words: An end-to-end test did its job and I felt fine. And that’s enough of the obscure song references from the 1980s, hopefully.

Let me explain the setting. We develop a big system that runs in production 24/7-style and is perpertually adjusted and improved. The system should run unattended and only require human attention when a real incident happens, either in the data or the system itself. If you look at the system from space, it looks like this:

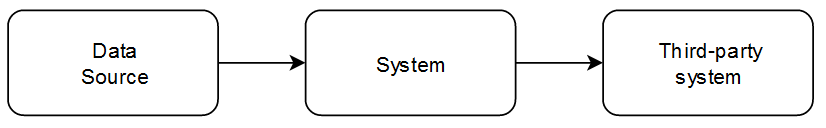

A data source (in fact, lots of data sources) occasionally transmits data to the system that gets transformed and sent to a third-party system that does all kind of elaborate analysis with it. Of course, there is more to the real system than that, but for our story, it is sufficient to know that there are several third-party systems, each with their own data formats. We’ll call them third-party system A (TPS-A) and TPS-B in this story.

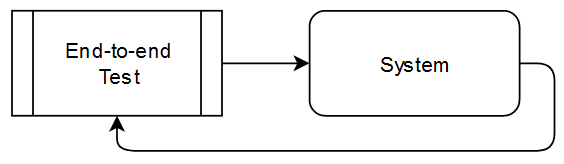

Our system is secured by lots and lots of unit tests, a good number of integration tests and a handful of end-to-end tests. All tests run green all the time. The end-to-end tests (E2ET) try to replicate the production environment as close as possible by running on the target operating system and using data transfer means like in the real case. The test boots up the complete system and simulates the data source and the third-party systems. By configuring the system so that it transfers back to the E2ET, we can write assertions in the kind of “given a specific input data, we expect this particular output data from the system, however it chooses to produce it”. This kind of broad-brush test is invalueable because it doesn’t care for specifics in the system. It only cares for output from the system.

This kind of E2ET is also difficult to write, complicated to run, prone to brittleness and obscure in its failure statement. If you write a three-line unit test, it is straight-forward, fast and probably pretty specific when it breaks: “This one thing that I’m testing is wrong now”. An E2ET as described here is like the Delphi Oracle:

  • E2ET: “Somewhere in your system, something doesn’t work the way I like it anymore.”
  • Developer: “Can you be more specific?”
  • E2ET: “No, but here are 2000 lines of debug output that might help you on your quest for the cause.”
  • Developer: “But I didn’t change anything.”
  • E2ET: “Oh, in that case, it could as well be the weather or a slow network. Mind if I run again?”

This kind of E2ET is also rather slow and takes its sweet time resetting the workspace state, booting the system again and using prolonged timeouts for every step. So you wait several minutes for the E2ET to fail again:

  • E2ET: “Yup, there is still something fishy with your current code.”
  • Developer: “It’s the same code you let pass yesterday.”
  • E2ET: “Well, today I don’t like it!”
  • Developer: “Okay, let me dive into the debug output, then.”

Ten to twenty minutes pass.

  • Developer: “Is it possible that you just choke on a non-free network port?”
  • E2ET: “Yes, I’m supposed to wait for the system’s output on this port and cannot bind to it.”
  • Developer: “You cannot bind to it because an instance of yourself is stuck in the background and holding onto the port.”
  • E2ET: “See? I’ve told you there is something wrong with your system!”
  • Developer: “This isn’t a problem with the system’s code. This is a problem with your code.”
  • E2ET: “Hey! Don’t blame me! I’m here to help. You can always chose to ignore or delete me if I’m too much of a burden to you.”

This kind of E2ET cries wolf lots of times for problems in the test code itself, for too optimistic timeouts or just oddities in the environment. If such an E2ET fails, it’s common practice to run it again to see if the problem persists.

How many false alarms can you tolerate before you stop listing?

In my case, I choose to reduce the amount of E2ET to the essential minimum and listen to them every time. If the test raises a false alarm, invest the time to come up with a way to make it more robust without reducing its sensitivity. But listen to the test every time.

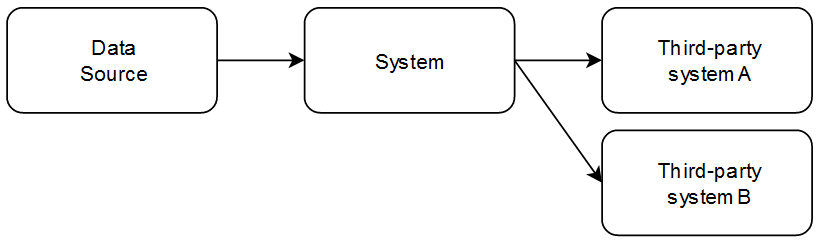

Because, in my story, the test insisted that third-party system A and B both didn’t receive half of their data. I could rule out stray effects in the network or on the harddisk pretty fast, because the other half of the data arrived just fine. So I invested considerable time in understanding the debug output. This led me nowhere – it seemed that the missing data wasn’t sent to the system in the first place. Checking the E2ET disproved this hypothesis. The test sent as much data to the system as ever. But half of it went missing underway. Now I reviewed all changes I made in the last few days. Some of them affected the data export to the TPS. But all unit and integration tests in this area insisted that everything worked as intended.

It is important to have this kind of “multiple witnesses”. Unit tests are like traces in a criminal investigation: They report one very specific information about one very specific part of the code and are only useful in larger numbers. Integration tests testify on the possibility to combine several code parts. In my case, this meant that the unit tests guaranteed that all parts involved in the data export work correct on their own (in isolation). The integration tests vouched that, given the right combination of data export parts, they will work as intended.

And this left one area of the code as the main suspect: Something in the combination of export parts must go wrong in the real case. The code that wires the parts together is the only code not tested by unit and integration tests, but E2ET. Both other test types base their work on the hypothesis of “given that everything is wired together like this”. If this hypothesis doesn’t hold true in the real case, no test but the E2ET finds a problem, because the E2ET bases on another hypothesis: “given that the system is started for real”.

I went through all the changes of the wiring code and there it was: A glorious TODO comment, written by myself on a late friday afternoon, stating: “TODO: Register format X export again after you’ve finished issue Y”. I totally forgot about it over the weekend. I only added the comment into the code, not as an issue comment. Friday afternoon me wasn’t cooperative with future or current me. In effect, I totally played myself. I don’t remember removing the registering code or writing the comment. It probably was a minor side change for an unimportant aspect of the main issue. The whole thing was surely done in a few seconds and promptly forgotten. And the only guardian that caught it was the E2ET, using the most nonspecific words for it (“somewhere, something went wrong”).

If I had chosen to ignore or modify the E2ET, the bug would have made it to production. It would have caused a loss of current data for the TPS. Maybe they would have detected it. But maybe, they would have just chosen to operate on the most recent data – data that doesn’t get updated anymore. In short, we don’t want to find out.

So what is the moral of the story?
Always have an end-to-end test for your most important functionality in place. Let it deal with your system from the outside. And listen to it, regardless of the effort it takes.

And what can you do if your E2ET has saved you?

  • Give your test a medal. No, seriously, leave a comment in the test code that it was helpful.
  • Write an unit or integration test that replicates the specific cause. You want to know immediately if you make the same error again in the future. Your E2ET is your last line of defense. Don’t let it be your only one. You’ve been shown a weakness in your test setup, remediate it.
  • Blame past you for everything. Assure future you that you are a better developer than this.
  • Feel good that you were able to neutralize your faux pas in time. That’s impressive!

When was the last time a test has saved you? Leave the story or a link to it in the comments. I can’t be the only one.

Oh, and if you find the random links to 80s music videos weird: At least I didn’t rickroll you. The song itself is from 1987 and would fit my selection.

Twelve years a bug

Recently, a friend recommended the talk “Love your bugs” by Allison Kaptur to me. It’s a good talk with a powerful message: Every bug is a chance to learn. The only prerequisite for this chance: You need to be aware of the bug. You need to see it and then understand and fix it.

What if you don’t see a bug for over a decade?

You can still learn from it – a lot. Here is a story about a bug that lingered in my code for twelve years and had impact on the software results without anybody, including me, noticing.

Let’s say the software is a measurement system that records physical measurement values that cannot be reenacted easily. The samples are measured in rapid succession and then stored away. The measurement results act as a quality quantifier as in “the sample was this good at that time”. The sample’s quality diminishes over time, even with perfect storage conditions. And just to be sure that the measurement is accurate, it isn’t performed once, but twice in quick succession: The measurement device traverses the sample in one direction, recording the values and uses the return path for a second measurement. This results in two measurement streaks that should, in theory, be very similar.

The raw measurement values are aggregated in different ways. In the final report, the maximum value over both measurement streaks is the most prominent and most important aspect. There is nothing exciting or error-prone about finding the maximum value in a value series, even twelve years ago. But I tested the code nonetheless. The whole value aggregation code was under test and had a good test coverage. All tests showed their thumbs up.

But twelve years ago, at the end of a workweek, on a Friday at 17 o’clock, I made a small and easy refactoring to the code. I know this in such detail because of the wonders of version control. Without version control, I probably would have learnt a lot less from this bug.

The code before the refactoring contained two nearly identical sections for the measurement streaks, making it duplicated code. There were only two differences: The first section of code counted from 0 to 99 and stored the values in the first streak’s array. The second section counted from 99 to 0, because the measurement device travels backwards over the sample, and stored the values into the second array.

My refactoring brought both pieces of code together: A new method with two parameters was introduced and called at both places. The first parameter specified a series of positions (0 to 99 or backwards), the second parameter specified the array to store into. All automated tests approved the changes. My manual testing showed no differences. The refactoring was going live.

Twelve years later, while working on a new engine for the measurement device, the customer took the raw values from the journal and performed some manual calculations. The maximum value calculation was wrong. It wasn’t wrong all of the time, but also not correct for all measurements. When it went wrong, it selected the second greatest value or, seldom, the third greatest value as the maximum value.

All the tests still insisted that everything is correct – as it was for twelve long years. There was no other change to the code that could affect the aggregation in any way.

There are two different ways that lead me to find the bug’s origin. The first way was to inspect the trail of commits in the area of code that performs the aggregation. My findings were that the abovementioned refactoring was the most likely culprit. The second way was to write more tests to ensure that yes, the maximum value calculation was indeed correct if given the correct values. Using the examples my customer had examined, I could prove with enough certainty that, given the input of all 200 values, the correct maximum value was returned in all cases. The aggregation therefore wasn’t given all values!

And that lead directly to the bug: The first measurement streak used the same array to store the values as the second streak. During the refactoring, I must have copied and pasted the call to the new method and forgotten to change the second parameter. Of 200 measured values, only 100 got stored permanently. The first 100 values were stored and promptly overwritten as the measurement device returned to its park position. Change the calls to store in both arrays and everything works like intended and like before the refactoring.

How did no test, automated or manual, catch this bug? It turns out that most automated tests were too focussed to indicate a problem. All unit tests that secured the maximum value calculation used given sets of values, they didn’t care about the origin of these value sets. The integration tests that covered the whole measurement process should have raised objections to the refactoring. But they used given sets of measurement values, too. And by chance, the given maximum value was in the second measurement streak. In fact, the given set of measurement values was produced by a loop that just increased a value. The greatest value was always the last one.

The manual tests had the same problem: The simulated measurement device produced measurement values that were either fixed or random. If your whole measurement uses the same fixed values, you don’t see it if half of them went missing. And if your measurement uses random values, you’ll have to pay close attention to a detail that isn’t in focus because it is unchanged. Except that one time when it was changed recently. Remember the change date? Friday afternoon, only minutes before the weekend? Not the best time to manually test a change that is a simple standard refactoring, after all.

So, what have I learnt? First: automated tests, even with great test coverage, aren’t enough. There is so much leeway in the setup of these tests that they will have blind spots without your knowledge. Second: A code review by another human (or even by the same human, some days later) might have caught the bug. It was painfully obvious in hindsight. The problem? “Might have” is an heuristics, just like your automated tests are.

My guess is that mutation testing would have shown the blind spot of the existing tests – among several hundred others. The heuristics is now your trained eye that sifts through the results and separates false positives from true positives.

Right now, I’ve fixed the bug, kept all additional tests and added one more: An integration test that performs a measurement with fixed values and checks nothing else but if all 200 values are stored at the end of the measurement. It’s oddly specific, but conveys this story in an automated fashion.

Oh, and I made another refactoring: I’ve replaced the arrays with collections. Hopefully, I won’t regret this one twelve years in the future. I’ve made it on a Monday.

Domain-aligned bugs

Frank C. Müller [CC BY-SA 4.0 (https://creativecommons.org/licenses/by-sa/4.0) ]

Imagine that you are an user of a typical enterprise software that handles commercial products and their prices. There are different prices in the software that are somehow related to each other. There is the purchase price that indicates your cost if you buy the product. There is the retail price that gets listed in your price lists and is paid by your customers, should they buy the product. You probably already figured out that the retail price should never be lower than the purchase price, because that would mean you lose money with every successful sale.

Let’s say that the enterprise software not only handles products, but also parts. Several parts combined, with some manufacturing effort, result in a product. Each part has a purchase price, the resulting product has a retail price. The retail price of the product should be higher than the sum of purchase prices of the parts. If it isn’t, you lose the costs of the manufacturing effort and some extra money with every successful sale.

If for any reason you cannot clearly estimate your manufacturing effort, the enterprise software has another input field for an amount of money that you can add to the sum of the parts’ costs. We call this field the “sales bonus”. So, if you sell a product made up of parts, your customer has to pay a price that consists at least of the retail prices of the parts and the sales bonus. Of course, your customer has an individual discount percentage that needs to be subtracted from the total price. Are you still following?

You are now thinking in the domain of price determination and financial mathematics. If you were the user of said enterprise software, you’d probably expect some bugs like these:

  • It is possible to enter a retail price lower than the purchase price
  • The price of products manufactured from parts isn’t calculated correctly
  • It is possible to enter a negative sales bonus
  • The total price with discount could be lower than the sum of purchase prices of the parts without a warning

All of them are bugs in the domain. All of them can be explained to a domain expert or a user with terms and concepts from the domain.

But what about the bug when you sell a product that consists of three parts, each with a retail price of 10 €, and a sales bonus of 5 €. You want to create a quote for your customer and the price shows up as 34,99999999998 €. You are a bit bewildered and try to countervail the apparent rounding error by changing the sales bonus to 5,00000000002 €. After this change you get another crazy total price and your prices in the database are different from what you entered, too. Everything seems to destabilize and deviate further and further from clear cut prices.

As a programmer, you know what happened. You know what caused this effect of numerical instability. Somebody stored monetary values in a floating point number. You know that is a bad idea and you’d never do this. But this blog post isn’t about you or what you should do or not do. It is about the user, expert in his domain, that stumbles over the bug as described and has to make some decision on how to fix it. This user cannot use any knowledge from the domain to even understand the mechanics of the bug. You, as the programmer, cannot explain this bug in terms of things the user already knows. You need to be vague (“the software doesn’t store the exact values, just approximations”) or introduce additional complexity (“we store this value by splitting it into a significand and multiply it with a factor consisting of a fixed base and an exponent. We can omit the base and just store the significand and the exponent and express a very large numerical range in just a few bits. Think about how cool that is!”).

Read the last explanation again, from the viewpoint of a salesman. We want to add some prices in the range of a few €, slap a moderate discount on top and call it a day. We don’t care about bits or exponential formulas. That is not part of our domain and it shouldn’t affect our domain or software that works in our domain. Confronting us with technical details reflects negatively on your ability to solve our problems. You seem to burden us with your problems in exchange.

As domain experts, we want only domain-aligned bugs.

Timestamps make horrible identifiers

vetre / fotoliaNot long ago, I’ve struggled with a system that uses timestamps as entity identifiers. What can I say? Timestamps aren’t meant to identify anything else than a specific point in time. Don’t use them as entity identifiers, ever. If you want to know why, I invite you to read on. The blog post is written in Freytag’s dramatic structure for added effect.

Exposition

We’ve designed a system that runs on multiple instances that communicate in all sorts of way. A central archive instance stores all data related to measurements. The whole network revolves around the notion of measurement. Measurement data is the most precious data and all instances will either produce or consume data based on these measurements.

Most important for human operators is an instance that lets you view all existing measurement data. Let’s call it the viewer. The viewer displays an overview list of all measurements in a given context and lets the operator choose to view ever more details of any of them. To be able to provide the overview list as fast as possible, we added a cache that holds the information.

Rising action

This measurement list cache was the source of all kinds of peculiar behaviour of the system. Most, but not all measurement data was incomplete. The list cache entries were assembled from different sources that were available at different times, so it seemed that while one part of the data got written to the cache, another part couldn’t be written for whatever reasons. The operator could load detailed data of some few measurements, but the majority just produced an error message that the data couldn’t be found (despite it being present).
The most obviously broken functionality left the following trace in the log files (paraphrased):

- storing measurement at 2016-02-28T13:25:55.189+01:00 into the list cache
- measurement stored
[...]
- loading measurement at 2016-02-28T13:25:55.189+01:00 from the list cache
- error: measurement not found in list cache

So, the system is essentially telling me that it can’t load some data it just stored. As you can imagine, this may lead to some questions about the sanity of the database product underneath.

Climax

After some investigation and fruitless integration testing, it dawned me: The problem wasn’t timing or the database. All the bugs could be explained with only one circumstance: Measurements were ultimately identified by their timestamp, the moment the measurement was made. There’s also a location, type and some other information in the identifier for each measurement, but only the timestamp changes between two measurements in the same narrow context. And the timestamp was stored in different precisions, depending on the origin of the measurement identifier. Most identifiers were create at the measurement producing system instances (let’s call them measurers) and had millisecond precision. As soon as they got stored in the production database (but not our development database), they lost the milliseconds. And some of the most important measurement data got exported to third-party systems, using a minute-based precision. So we had one measurement identifier in the system, but with three different types, each mostly incompatible to each other.

Falling action

That’s why the log excerpt above never occurred in development, but in production: The measurement is stored in the database, the used identifier gets passed around in the software, but a query on the exact same identifier in the database yields no result because the timestamps now differ in the millisecond range. And the strange effects that sometimes, everything worked just fine? That’s when the milliseconds are zero by chance. Given that most actions in the system are scheduled and performed automatically exactly on the zero mark, the zero milliseconds case happened more often than it would in an even distribution.

Our system dealt with three types of measurement identifiers: Millisecond-precise identifiers produced by the measurers, second-precise identifiers used by the measurement list cache and minute-precise identifiers used (and sometimes fed back into the system) by the data export. These identifiers were incompatible even for the same measurement most of the time, but not always. In unit tests, the timestamps were made up and didn’t reveal the problem properly (who thinks about odd milliseconds when making up a timestamp?).

My solution was to pull this incompatibility up into the type system. Instead of one measurement identifier, there are now three measurement identifiers: MillisecondPreciseIdentifier, SecondPreciseIdentifier and MinutePreciseIdentifier. An identifier of higher precision can be converted to an identifier of lower precision, but not the other way around. Everytime a measurement identifier is created, it needs to explicitely state its precision of the timestamp. This made the compiler highlight the problematic usages clearly as type conflicts and therefore dealing with the problem much easier.

Revelation

Choosing a timestamp as a vital part of a (measurement) identifier was a mistake from the beginning. The greater problem was the omission of the timestamp’s precision. Timestamps perform more like floating-point numbers and less like integers, even if every timestamp can be represented by a long. As soon as I made the precision of each timestamp clear to the compiler, the bugs revealed themselves. The annoying difference between developer and production database would have been detected much sooner, because a millisecond-precise timestamp will now warn in the log files if its millisecond part is zero. As soon as this log entry is seen very often, its clear that something is wrong. The new datatypes not only serve as a clearer API contract definition tool, but also as a runtime sanity check.

If you don’t want to repeat this mistake, keep in mind that each timestamp, date or whatever time-related data type you use will inherently have a maximum precision. As soon as you mix different precisions into the same data type, you’re going to have a bad time. Explicitely state the required precision in your type system and your compiler will keep an eye on it, too.

The Story of a Multithreading Sin

In my last blog entry, I wrote about multithreading pitfalls (in Java), and ironically, this was the week when we got a strange bug report from one of our customers. This blog entry tells the story of the bug and adds another multithreading pitfall to the five I’ve already listed in my blog entry “When it comes to multithreading, better be safe than sorry”.

The premise

We developed a software that runs on several geographically distant independent “stations” that collect a multitude of environmental measurement data. This data is preprocessed and stuffed into data packages, which are periodically transferred to a control center. The software of this control center, also developed by us, receives the data packages, stores them on disk and in a huge database and extracts the overall state of the measurement network from raw data. If you describe the main task of the network on this level, it sounds nearly trivial. But the real functionality requirements are manifold and the project grew large.

We kept the whole system as modular as necessary to maintain an overall grasp of what is going on where in the system and installed a sufficient automatic test coverage for the most important parts. The system is still under active development, but the main parts of the network are in production usage without real changes for years now.

The symptoms

This might explain that we were very surprised when our customer told us that the control center had lost some data packages. Very soon, it turned out that the control center would randomly enter a state of “denial”. In this state, it would still accept data packages from the stations and even acknowledge their arrival (so the stations wouldn’t retry the transmission), but only write parts of the package or nothing at all to the disk and database. When the control center entered this state, it would never recover from it. But when we restarted the software manually, everything would run perfectly fine for several days and then revert back into denial without apparent trigger.

We monitored the control center with every means on our disposal, but its memory consumption, CPU footprint and threading behaviour was without noticeable problem even when the instance was in its degraded state. There was no exception or uncommon entry logged in the logfiles. As the symptom happened randomly, without external cause and with no chance of reversal once it happened, we soon suspected some kind of threading issue.

The bug

The problem with a threading issue is that you can’t just reproduce the bug with an unit or system test. We performed several code reviews until we finally had a trace. When a data package arrives, a global data processing lock is acquired (so that no two data packages can be processed in parallel) and the content of the package is inspected. This might trigger several network status changes. These change events are propagated through the system with classic observer/listener structures, using synchronous calls (normal delegation). The overall status of the network is translated in a human readable status message and again forwarded to a group of status message listeners. This is a synchronous call again. One of the status message listeners was the software driver for a LED ticker display. This module was a recent addition to the control center’s hardware outfit and used to display the status message prominently to the operators. Inside this LED software driver, some bytes are written to a socket stream and then the driver awaits an answer of the hardware device. To avoid the situation that two messages are sent to the device at the same time, a lock is acquired just before the message is sent. This code attracted our attention. Lets have a look at it:

private Message lastMessage = new Message();

public void show(Message message) {
    synchronized (this.lastMessage) {
        writeCommandAndWaitForResponse(Command.SHOW_TEXT, message.asBytes());
        this.lastMessage = message;
    }
}

The main problem here is the object the lock is acquired upon: the reference of lastMessage is mutable! We call this a liquid lock, because the lock isn’t as solid as it should be. It’s one of the more hideous multithreading pitfalls as it looks like everything’s fine at first glance. But this lock doesn’t have a complete “locking” effect because each caller may acquire the lock of a different instance. And a lock with a flawed locking behaviour is guaranteed to fail (in production). The liquid lock is like the bigger brother of the local lock. It isn’t local, but its mutability cause the same problems.

The bug finally turned out to be caused by the liquid lock in the LED display driver that got notified of system message changes when a data package arrived. But only if multiple messages were sent at once to the device, discarding some of the necessary answers in this circumstance or if the connection to the LED hardware would fail in the midst of a transmission, the system would not return from the write attempt. If one thread wouldn’t return to the data package processor, the global data processing lock would not be freed (read the start of this chapter again, this is the most important lock in the system!). And while the data processing lock was still held, all other data packages would be received, but piling up to obtain the lock. But the lock would never be returned from the thread waiting on an answer from a hardware device that had no intention to send another answer. This was when the control center appeared to be healthy but didn’t process any data packages anymore.

The conclusion

If you want to avoid the category of liquid lock multithreading bugs, make sure that all your lock instance references are immutable. Being final is an important property of lock instance references. Avoid to retrieve your locks from notoriously muteable data structures like collections or arrays. The best thing you can do to avoid liquid locks is to “freeze” all your lock instances.

Another insight from this story is that software modules have to be separated threadwise, too. It was a major design flaw to let the data processing thread, while holding the main processing lock, descend down into the deep ends of the LED driver, eventually getting stuck there for infinity. Some simple mechanisms like asynchronous listener notification or producer/consumer queues for pending transmission requests would have helped to confine the effects of the liquid lock bug inside the LED module. Without proper thread separation, it took down the whole software instance.
