Tell different stories within the same universe

You might know this from fantasy book series: the author creates a unique world, a whole universe of their own and sets a story or series of books within it. Then, a few years later, a new series is released. It is set in the same universe, but at a different time, with different characters, and tells a completely new story. Still, it builds on the foundation of that original world. The author does not reinvent everything from scratch. They use the same map, the same creatures, the same customs and rules established in the earlier books.

Examples of this are the Harry Potter series and Fantastic Beasts, or The Lord of the Rings and The Hobbit.

But what does this have to do with software development?
In one of my projects, I faced a very similar use case. I had to implement several services, each covering a different use case, but all sharing the same set of peripherals, adapters, and domain types.

So I needed an architecture that did not just allow for interchangeable periphery, as is usually the focus, but also supported interchangeable use cases. In other words, I needed a setup that allowed for multiple “books” to be written within the same “universe.”

Architecture

Let’s start with a simple example: user management.

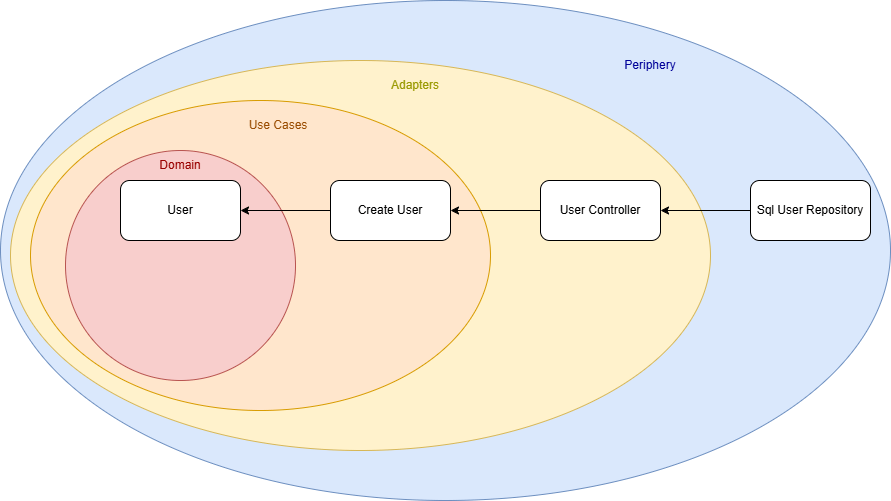

I originally implemented it following Clean Architecture principles, where the structure resembles an onion, dependencies flow inward, from the outer layers to the core domain logic. This makes the outer layers (the “peel”) easily replaceable or extendable.

Our initial use case is a service that creates a user. The use case defines an interface that the user controller implements, meaning the dependency flows from the outer layer (the controller) toward the core. So far, so good.

However, I wanted to evolve the architecture to support multiple use cases. For that, the direct dependency from the UserController to the CreateUser use case had to be removed.

My solution was to introduce a new domain module, a shared foundation that contains all interfaces, data types, and common logic used by both use cases and adapters. I called this module the UseCaseService.

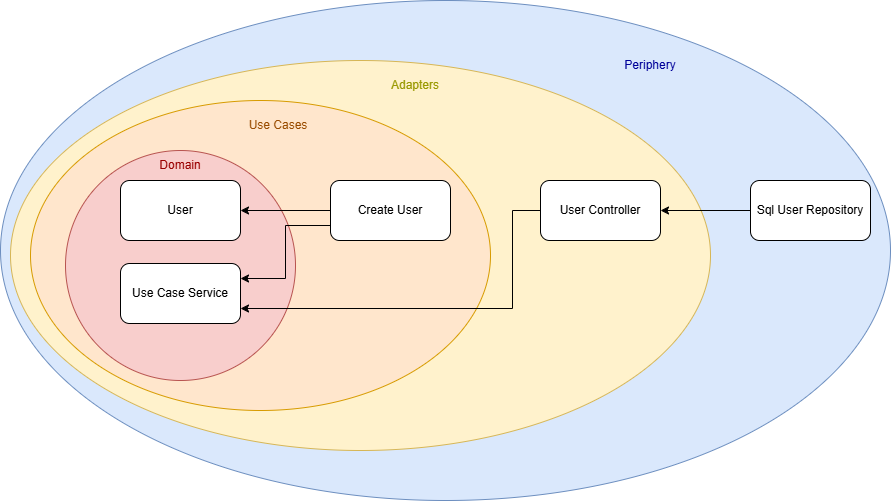

The result is a new architecture diagram:

There is no longer a direct connection between a specific use case and an adapter. Instead, both depend on the shared UseCaseService module. With this setup, I can easily create new use cases that reuse the existing ecosystem without duplicating code or logic.

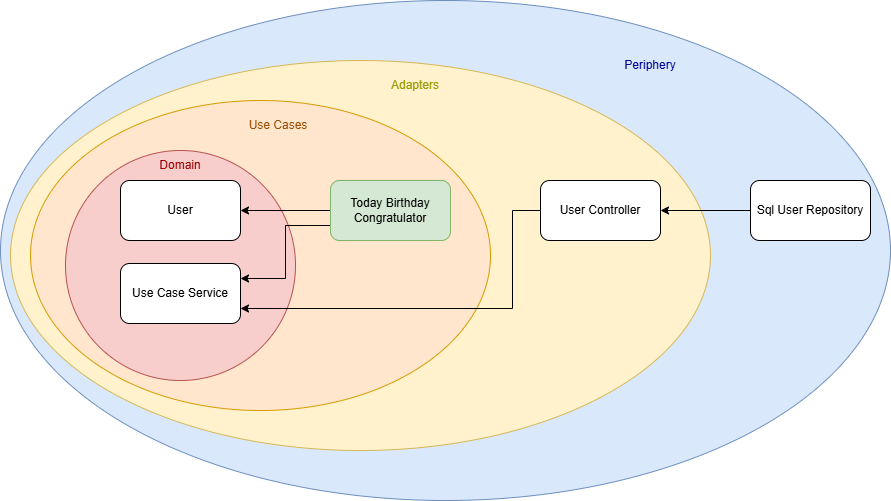

For example, I could implement another service that retrieves all users whose birthday is today and sends them birthday greetings. (Whether this is GDPR-compliant is another discussion!) But thanks to this architecture, I now have the freedom to implement that use case cleanly and efficiently.

Conclusion

Architecture is a highly individual matter. There is no one-size-fits-all solution that solves every problem or suits every project. Models like Clean Architecture can be helpful guides, but ultimately, you need to define your own architectural requirements and find a solution that meets them. This was a short story of how one such solution came to life based on my own needs.

It is also a small reminder to keep the freedom to think outside the box. Do not be afraid to design an architecture that truly fits you and your project, even if it deviates from the standard models.

The algorithm in an algorithm – Builder design pattern

In the following blog post, I would like to explain to you, the design pattern builder, why this is an algorithm in the algorithm and what advantages result from it.

General

The builder is a creational design pattern. It separates the construction of complex objects from their representations, allowing the same construction processes to be reused.

The design pattern consists of a director, the builder interface, and concrete builder implementations. The director is responsible for the abstract construction of the product and has a defined interface with the builder to pass the design instructions. The concrete builders then build the concrete product according to the instructions and can also provide the generated product.

So in the end, the director defines its own little programming language inside the program where the construction instructions can be programmed as algorithm. The builder then executes that algorithm. So we have a program in the program, an algorithm in the algorithm. Crazy!

Example cake recipe

We know such procedures from real life. For example, from the kitchen. When you bake a cake, you take your yellow mixing bowl, the ingredients, and the blue mixer and make the dough. Very concrete.

But now, if someone asks about the recipe, then we abstract it from our concrete equipment to a general manual. There, it only says you are mixing the ingredients, and your yellow mixing bowl and blue mixer are not mentioned. So someone else can bake the cake in their own kitchen with their own equipment. Should your blue mixer ever fail, you can easily carry out the recipe with a whisk or with the new food processor.

Example file generation

An example from programming is the generation of a file. For example, a pdf certificate. If you program everything directly in PDFBox, it works first. But if you ever want to use a different library, or if you also want the certificate as a normal text document or image, you need to rewrite everything.

With the design pattern, you would have an algorithm that says I want “certificate” as a title, then a dividing line, then a table and then this paragraph. Exactly how this will be implemented is not known. The PDFBox builder takes these instructions and creates the file with its own library-specific commands.

If the library or file type changes, only one new builder needs to be written. For example, a text file builder, an image builder or an OpenPDF builder. The logic of how the certificate should look at the end remains unchanged.

Conclusion

Finally, separating the construction from the production offers some advantages. The program is more expandable and modifiable. It also complies with the single responsibility principle. The disadvantage is a close coupling between the product, the concrete builder, and the classes involved in the construction, making it difficult to change the basic process.

A Purpose of Domain-Driven-English-German-Language-Mumbo-Jumbo

Disclaimer: Due to it’s nature, this blog article needs to make some use of the German language. This is part of its essence and could not be avoided, sorry to all international readers.

Since its conception in 2003, the expression “Domain-Driven Design” might have been tossed around a bit, together with all the other XYZ-Driven Designs that are out there. As usual with such terms, I only try to gather the core points of these ideas; I do not like sticking to any such concept with religious fervor or otherwise dogmatic understanding. Moreover, these concepts are usually not of the type “you either use them or you don’t”, but you have some control over the degree in which you employ them, depending on your requirements as a whole.

This is why in a new project, I might implement a handful of ideas and see where it goes, always prepared to call it a day and toss any rule out when it endangers my progress. On the other hand, if I only follow principles that instantly convince me, I risk missing out on some practice that just is unusual, but not bad in itself.

Domain-Driven Design, in my understanding, aims at aligning the architectural details of your code base with the domain model, i.e. the technical peculiarities of your (customer’s) specific use case. Which doesn’t sound hard or bad per se, but as usual, takes some practice to shed some light on.

Enter the idea of using German words in your code. For variables, methods, classes, and such stuff – even with Umlauts and the Eszett (“ß”). If one is not used to that, such code might instantly induce some sort of digestive sickness or at least that’s what it has done to me, because of it’s sheer look, i.e.

// just some example to look at

var sortedZuordnungen = szenario.SortedZeitplanForArbeitsplatz(arbeitsplatz.Id)
.ToList();
var gesperrteHalbtage = sperrungen.Where(s => s.AufArbeitsplatz(arbeitsplatz.Id)).Select(s => s.Halbtag);

var nächsteZuordnung = sortedZuordnungen.FirstOrDefault();
Halbtag tryStart = Constants.HeuteVormittag;

while (nächsteZuordnung != default)
{
    tryStart.CreateListFromHere(anzahlHalbtage, gesperrteHalbtage);
    nächsteZuordnung = FindNächsteZuordnung();
}

(replace “German” with any other language your customer might use; if you’re living in a completely English-speaking environment, this article should be of limited insight for you. Sorry again.)

Now code like this – at first – what is this!? That’s not proper! It looks like the sound of some older German politician who never really bothered learning the English language, with some crazy dialect and whatnot!

The advantage behind this concept becomes especially apparent when dealing with a lot of very generic terms. E.g. the word “component” might just mean a button on your UI, or it might mean something very specific for your customer – or even worse, you might mean something very specific for your customer, but in reality, he would never refer to that entity with that word, so… you’re left with a chance of awkward bewilderment in every single meeting with the guy.

So, despite it’s weird look – this is one of the concepts that I haven’t tossed out the window yet. The key point is the overall reduction of friction in your thoughts. In communicating with various languages, one always has to do some minor translations in your head. These can be faulty or misleading either way – the nature of the language itself is secondary.

What works for me, is

  • Pure code fabrications that are close to the programming language get English names like usual
  • Things that a customer might talk about in German should get a German name
  • German and English can be mixed in a single word without any shame
  • Thus, words can be long, but you have an IDE who can help with that
  • German compound words get the correct German capitalization, i.e. the equivalent of “componentNumber” would be “komponentennummer”, not “komponentenNummer”
  • The linking of two German parts happens with the correct grammatical standards, i.e. a “workPlace” becomes an “arbeitsplatz” with the “s” inbetween (Fugen-s).

For some reason, this by now resulted in quite an uninterrupted workflow for me. The last two rules were an interesting finding because I noticed that without them, I really made a noticeable pause in my thinking process whenever I thought about these entities. This pause is now gone.

E.g. by now, the cognitive load of talking about a “KomponentenController” – something that is a Controller from a software engineering point of view and dealing with components from a domain point of view, appears easier for me than having to talk about a “ComponentController” with the extra translation of Component and Komponente. Mind you, there are enough words that do not sound that similar in our two languages.

I will not use this concept in every single project I might start from now. I.e. for hobby projects (where I’m my own customer), I would still prefer the 100%-English-language solution. But depending on your project, this is worth a try, and I’m positively amazed on how well that can work.

Learning UX design: where do I start?

Where do I start? A typical question when trying to step into a new field. So many resources, so many definitions, concepts, opinions.

Where do I start? A typical question when trying to step into a new field. So many resources, so many definitions, concepts, opinions. A needle in a haystack. Most of the beginner articles for UX are tailored for design students. Many of the resources for teaching design to developers aim at getting better at visual design or interaction design. But what if your goal is to make life better for users of the software you develop ?
A simple question. ‘It depends’ I hear a lot. I think there are two things everybody can do or learn to do that have a profound effect on the UX of your products.

Think

Increasingly – since beginning to focus on UX – I get the following feedback by our customers and users: “You surely put much thought into it.” Much thought. What does that even mean? Why do they say that?
Common wisdom says you should think like a user in order to create a better experience for him. In my view you should think for the user. Think about what he wants and what he needs. The goals he want to reach and the information and guidance he needs.
Don’t stop at the what. As developers we often only consider what needs to be done. The user stories. The functional specifications. What functionality needs to be implemented. Fixed scope. We do not need to create exactly what the spec says.
Remember our goal? Make life better for our users. We need to understand what this means. Besides understanding the processes, methods and concepts of our user’s domain, we need to find out what the goals are and why the user wants to reach it.
Nobody wants to use a writing application. Nobody wants to write a letter. We need to dig deeper. Maybe he wants to cancel a magazine subscription or a contract. Or he wants to express his feelings to a loved one. That’s better. But what is his goal? In case of the cancellation letter: To save money? To reduce waste?
The why is important to the user and therefore it should be important to us. Not only our focus is changed from the things we need to implement to the goals the user wants to reach, we also have more freedom and a guiding post at the same time. We can find solutions which are outside of the initial user story or even outside the computer. And on the other hand we can evaluate decisions we need to make against helping our users reach their goals.
Think of our work as a bridge. The user wants to reach the other side of the river. Our bridge should be the most efficient and pleasurable way to get there.

Pleasurable

This is where the feelings from the journey of our user comes in. As a developer we try to find a balance between the goals of the business and the technological constraints. When we consider making the lives of our users better, the goals and needs of the users add a new force to be weighted. This is the primary task of the UX designer. We need to find the underlying goals and intentions on the one side and the needs on the other. All of them need to be balanced with the goals of the business.
So how do I find these intentions and needs?

Listen

Really, really listen to your users. The notion that users do not know what they want is poisonous. They don’t need to tell you directly what they want. You need to listen. You need to observe. Start with a beginner’s mind. Let the user explain. Do not assume. I tend to think ahead, to formulate ideas and solutions while listening. Now I am rather naive. I ask why. Why is it this way. Why after why. Do not settle but also do not stress your users. Get to the goals. Discover the needs from the current office environment of the user or the difficulty of the task. Learn what is important for the user and what not. Learn to listen for specific naming and phrasing. Human needs stem from our basic nature, look at Maslow’s hierarchy of needs.
After you collected all sorts of information you need to resolve conflicts, balance the trade offs, reach consensus. You need to construct a whole from the parts of your listening. Therefore you need to think. Prioritize. Sort out. Reflect. Again: you should not assume. Use your whys.

Start with thinking and listening

UX design is a broad field with a simple goal: making life better for our users. In order to reach this we need to think. We need to listen. We need to care. No tool or method will change that. As developers we like to learn tools, languages and have recipes and methods. We would love to have a top ten resources list. The books to read. The course to learn. But all that does not save us from thinking. UX design is even more so: thinking for the user is the core of UX design.

Web, your users deserve better

The web has come a long way since its inception. But nevertheless many applications fail to serve the user appropriately. We talk a lot about new presentation styles, approaches and enhancements. These are all good endeavors but we should not neglect the basics.

The web has come a long way since its inception. But nevertheless many applications fail to serve the user appropriately. We talk a lot about new presentation styles, approaches and enhancements. These are all good endeavors but we should not neglect the basics. Say you have crafted a beautiful application. It is fast, reliable and has all features the client, user or product manager has envisioned. But is it usable? Is its design up to the task? How should you know? You are no designer. But you can evaluate if your application has the fundamental building blocks, the basics. How?
Fortunately there is an ISO standard about the proper behaviour of information systems: ISO 9241-110. It defines seven principles for dialogues (in a wider sense):

  • Suitability for the task: the dialogue is suitable for a task when it supports the user in the effective and efficient completion of the task.
  • Self-descriptiveness: the dialogue is self-descriptive when each dialogue step is immediately comprehensible through feedback from the system or is explained to the user on request.
  • Controllability: the dialogue is controllable when the user is able to initiate and control the direction and pace of the interaction until the point at which the goal has been met.
  • Conformity with user expectations: the dialogue conforms with user expectations when it is consistent and corresponds to the user characteristics, such as task knowledge, education, experience, and to commonly accepted conventions.
  • Error tolerance: the dialogue is error tolerant if despite evident errors in input, the intended result may be achieved with either no or minimal action by the user.
  • Suitability for individualization: the dialogue is capable of individualization when the interface software can be modified to suit the task needs, individual preferences, and skills of the user.
  • Suitability for learning: the dialogue is suitable for learning when it supports and guides the user in learning to use the system.

This sounds pretty abstract so let’s take a look at each principle in detail.

Suitability for the task

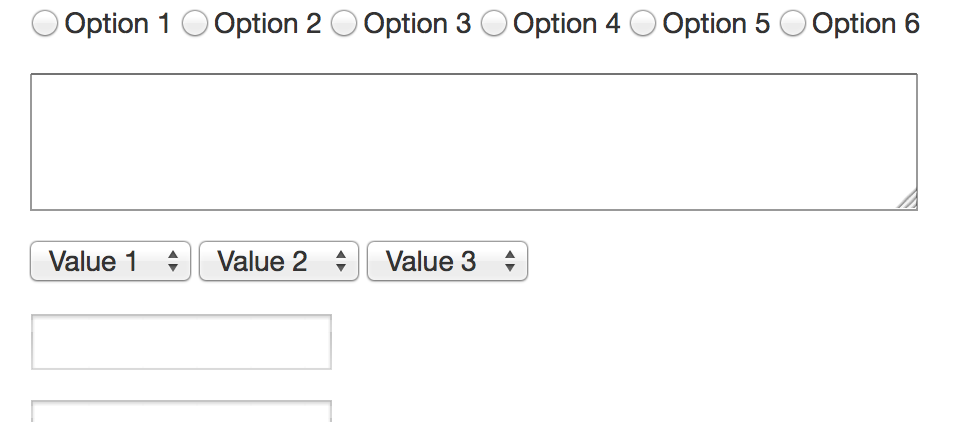

bloated app

Simple and easy. You all know the bloated applications from the desktop with myriads of functions, operations, options, settings, preferences, … These are easy to spot. But often the details are left behind. Many applications try to collect too much information. Or in the wrong order. Scattered over too many dialogues. This is such a big problem in today’s information systems that there’s even a German word for preventing this: Datensparsamkeit. Your application should only collect and ask for the information it needs to fulfill its tasks.
But not only collecting information is a problem. Help in little things like placing the focus on the first input field or prefilling fields with meaningful values which can be automatically derived improve the efficience of task completion. Todays application has many context information available and can help the user in filling out these data from the context she is in like the current date, location, selected contexts in the application or previous values.
Above all you have to talk to your users and understand them to adequately support their goals. Communication is key. This is hard work. They might not know what is important to them. Then watch them using your application, look at how they reached their goals before your application was there. What were their problems? What went well? What (common) mistakes did they make? How can your application avoid those?

Self descriptiveness

In every part of your application the user needs to know what is the function of every item on the screen. A recent trend in design generates widgets on the screen that are too ambiguous. Is this a link, a button or just text? What is clickable? Or editable? UX calls this an affordance:

“a situation where an object’s sensory characteristics intuitively imply its functionality and use”

So just from looking at it the user has to have an idea what the control is for. So when you look at the following input field, what is the format of the date you need to enter?

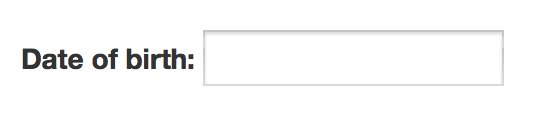

date format

So if your application accepts a set of formats you should tell the user beforehand. Same with required fields or constraints like maximum or minimum length or value ranges. But nowadays applications can go a step further: you can tell the user while she enters her data that her input contradicts another input or value in your database. You can tell her that the username she wants is already taken, the date of the appointment is already blocked.

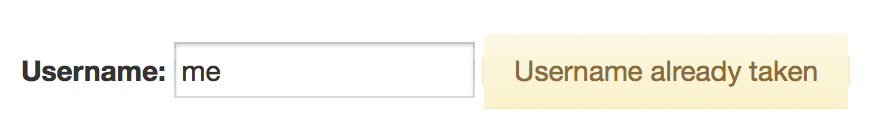

username taken

Controllability

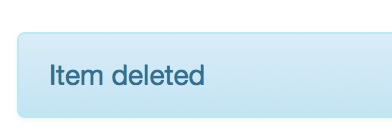

Everybody has seen this dreaded message:

Item was deleted

Despite any complex confirmations needed to delete an item items get deleted accidentally. What now? Adding levels of confirmation or complex rituals to delete an item does not value the users and their time. Some applications only mark an item as deleted and remove this flag if necessary. That is not enough. What if the user does not delete but overwrites a value of an item by mistake? Your application needs an undo mechanism. A global one. Users as all humans make mistakes. The technology is ready to and should not make them feel bad about it. It can be forgiving. So every action an user does must be revocable. Long running processes must be cancelable. Updates must be undoable.
I know there are exceptions to this. Actions which cause processes in the real world to start can sometimes be irrevocable. Sometimes. Nobody thought that sending an email can be undone. Google did it. How? They delay sending and offer an option to cancel this process. Think about it. Maybe you can undone the actions taken.
Your application should not only allow to reverse a process but also to start a process and complete it. This sounds obvious. But many applications set so many obstacles to find how to start an action. Show the actions which can be started. Provide shortcuts to the user to start and to advance. If your process has multiple steps make it easy for the user to return to where she left.

Conformity with user expectations

Especially in web design where there is so much freedom how your application looks: avoid fancy- or cleverness.

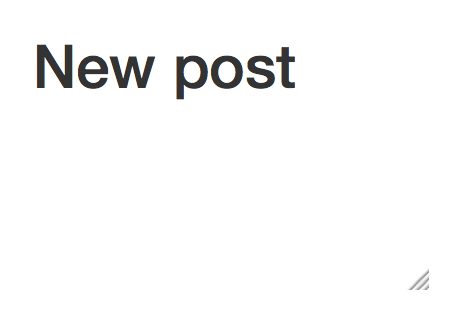

fancyness - blog post without borders and title

There are certain standards how widgets look, stick to them. If the users clicks a button on a form she expects that the content she entered is submitted. If she wants to upload a file the button should be labelled accordingly. Use clear words. Not only conventions determine how something is worded but also the task at hand. If the user expects to see a chart of her data, “calculate” or “generate” might not be the right button label even if the application does that. So again: talk to your users, understand them and their experience. Choose clarity over cleverness. Make it obvious. Your application might look “boring” but if the user knows where and what to do this is some much more worth.

Error tolerance

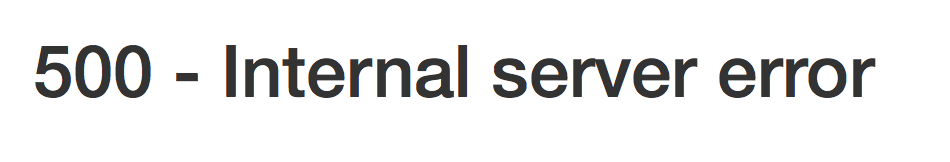

Oh! Your application accepts scientific notation. Entering 9e999999999… and

boom!

Users don’t enter malicious data by purpose (at least not always). But mistakes happen. Your application should plan for that. Constrain your input values. Don’t blow up when the users attachs a 100 GB file. Tell them what values you accept and when and why their entered information does not comply. Help them by showing fuzzy matches if their search term doesn’t yield an exact match. Even if the user submitted data is correct, data from other sources might not be. Your application needs to be robust. Take into account the problem and error cases not just the sunshine state.

Suitability for individualisation

Users are different. They have differ in skills, education, knowledge, experience and other characteristics. Some might need visual assistance like a color blind mode. Your application needs to provide this. Due to the different levels of experience and the different approachs a user takes your application should provide options to define how much and how the presented information is shown. Take a look at the following table of values. Do you see what is shown?

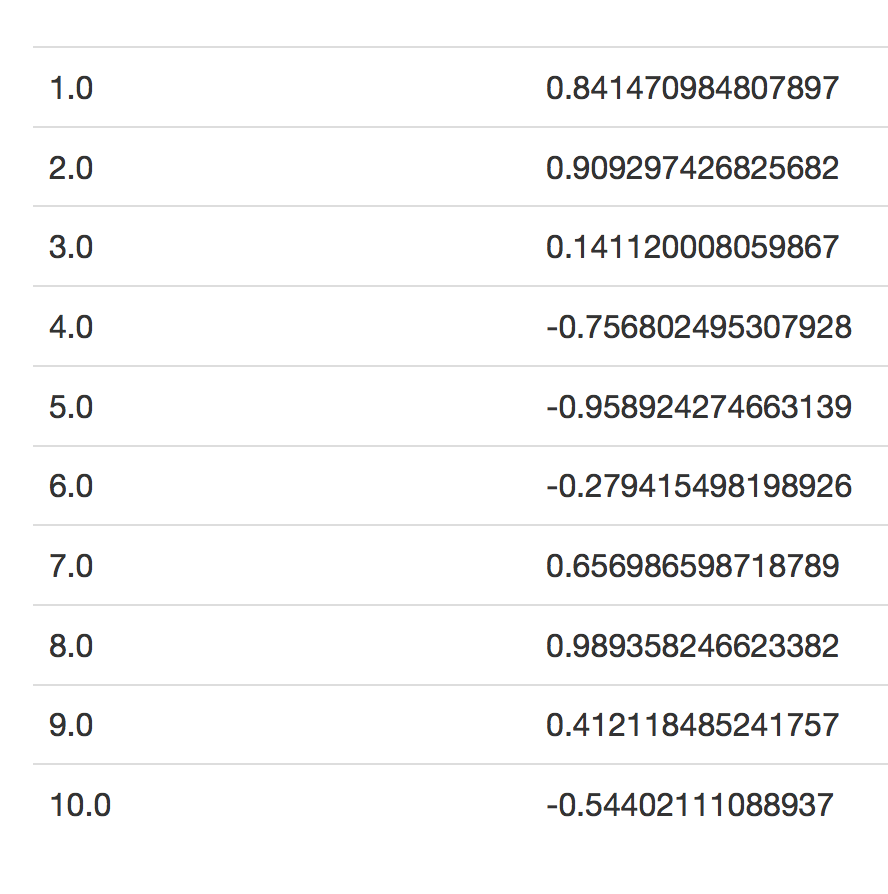

sinus curve values

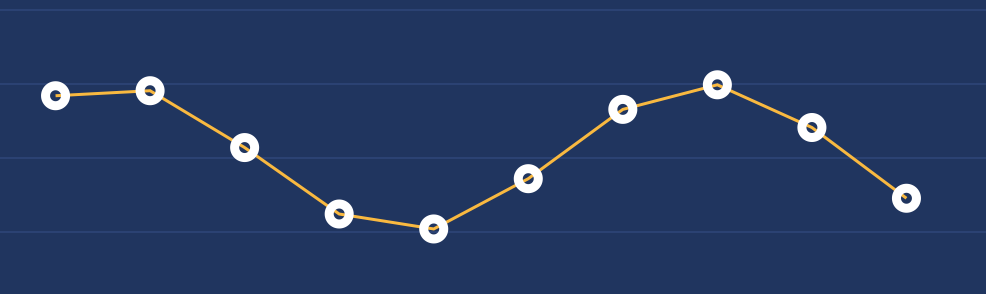

Now take a look at a graph with the same values.

sinus curve values as graph

Sometimes one representation is better as another. Again talk to your users they might prefer different presentations.

Suitability for learning

You know your application. You know where to start an action and where to click. You know how the search is used and what filters are. You know where to find the report generation. You built it. But for first time users it is as entering a foreign city. Some things might be familiar and some strange. You need to think about the entry of your application. Users need help. Think about the blank slate, when your user or your application does not have any data. How do you guide the user to create her first project or enter information for the first item. She needs help with where to find the appropiate buttons and links to start the processes. She might not recognize the function behind an icon at first glance. Sometimes a tooltip helps. Sometimes you need a legend. And sometimes you should use a text instead of an icon.

icon glory
