git-submodules in Jenkins pipeline scripts

Nowadays, the source control git is a widespread tool and work nicely hand in hand with many IDEs and continuous integration (CI) solutions.

We use Jenkins as our CI server and migrated mostly to the so-called pipeline scripts for job configuration. This has the benefit of storing your job configuration as code in your code repository and not in the CI servers configuration. Thus it is easier to migrate the project to other Jenkins CI instances, and you get versioning of your config for free.

Configuration of a pipeline job

Such a pipeline job is easily configured in Jenkins merely providing the repository and the location of the pipeline script which is usually called Jenkinsfile. A simple Jenkinsfile may look like:

node ('build&&linux') {
    try {
        env.JAVA_HOME="${tool 'Managed Java 11'}"
        stage ('Prepare Workspace') {
            sh label: 'Clean build directory', script: 'rm -rf my_project/build'
            checkout scm // This fetches the code from our repository
        }
        stage ('Build project') {
            withGradle {
                sh 'cd my_project && ./gradlew --continue war check'
            }
            junit testResults: 'my_project/build/test-results/test/TEST-*.xml'
        }
        stage ('Collect artifacts') {
            archiveArtifacts(
                artifacts: 'my_project/build/libs/*.war'
            )
        }
    } catch (Exception e) {
        if (e in org.jenkinsci.plugins.workflow.steps.FlowInterruptedException) {
            currentBuild.result = 'ABORTED'
        } else {
            echo "Exception: ${e.class}, message: ${e.message}"
            currentBuild.result = 'FAILURE'
        }
    }
}

If you are running GitLab you get some nice features in combination with the Jenkins Gitlab plugin like automatic creation of builds for all your branches and merge requests if you configure the job as a multibranch pipeline.

Everything works quite well if your project resides in a single Git repository.

How to use it with git submodules

If your project uses git-submodules to connect other git repositories that are not directly part of your project the responsible line checkout scm in the Jenkinsfile does not clone or update the submodules. Unfortunately, the fix for this issue leads to a somewhat bloated checkout command as you have to copy and mention the settings which are injected by default into the parameter object of the GitSCM class and its extensions…

The simple one-liner from above becomes something like this:

checkout scm: [
    $class: 'GitSCM',
    branches: scm.branches,
    extensions: [
        [$class: 'SubmoduleOption',
        disableSubmodules: false,
        parentCredentials: false,
        recursiveSubmodules: true,
        reference: 'https://github.com/softwareschneiderei/ADS.git',
        shallow: true,
        trackingSubmodules: false]
    ],
    submoduleCfg: [],
    userRemoteConfigs: scm.userRemoteConfigs
]

After these changes projects with submodules work as expected, too.

Ansible in Jenkins

Ansible is a powerful tool for automation of your IT infrastructure. In contrast to chef or puppet it does not need much infrastructure like a server and client (“agent”) programs on your target machines. We like to use it for keeping our servers and desktop machines up-to-date and provisioned in a defined, repeatable and self-documented way.

As of late ansible has begun to replace our different, custom-made – but already automated – deployment processes we implemented using different tools like ant scripts run by jenkins-jobs. The natural way of using ansible for deployment in our current infrastructure would be using it from jenkins with the jenkins ansible plugin.

Even though the plugin supports the “Global Tool Configuration” mechanism and automatic management of several ansible installations it did not work out of the box for us:

At first, the executable path was not set correctly. We managed to fix that but then the next problem arose: Our standard build slaves had no jinja2 (python templating library) installed. Sure, that are problems you can easily fix if you decide so.

For us, it was too much tinkering and snowflaking our build slaves to be feasible and we took another route, that you can consider: Running ansible from an docker image.

We already have a host for running docker containers attached to jenkins so our current state of deployment with ansible roughly consists of a Dockerfile and a Jenkins job to run the container.

The Dockerfile is as simple as


FROM ubuntu:14.04
RUN DEBIAN_FRONTEND=noninteractive apt-get update && apt-get -y dist-upgrade && apt-get -y install software-properties-common
RUN DEBIAN_FRONTEND=noninteractive apt-add-repository ppa:ansible/ansible-2.4
RUN DEBIAN_FRONTEND=noninteractive apt-get update && apt-get -y install ansible

# Setup work dir
WORKDIR /project/provisioning

# Copy project directory into container
COPY . /project

# Deploy the project
CMD ansible-playbook -i inventory deploy-project.yml

And the jenkins build step to actually run the deployment looks like


docker build -t project-deploy .
docker run project-deploy

That way we can tailor our deployment machine to conveniently run our ansible playbooks for the specific project without modifying our normal build slave setups and adding complexity on their side. All the tinkering with the jenkins ansible plugin is unnecessary going this way and relying on docker and what the container provides for running ansible.

Analyzing gradle projects using SonarQube without gradle plugin

SonarQube makes static code analysis easy for a plethora of languages and environments. In many of our newer projects we use gradle as our buildsystem and jenkins as our continuous integration server. Integrating sonarqube in such a setup can be done in a couple of ways, the most straightforward being

  • Integrating SonarQube into your gradle build and invoke the gradle script in jenkins
  • Letting jenkins invoke the gradle build and execute the SonarQube scanner

I chose the latter one because I did not want to add further dependencies to the build process.

Configuration of the SonarQube scanner

The SonarQube scanner must be configured by property file called sonar-project.properties by default:

# must be unique in a given SonarQube instance
sonar.projectKey=domain:project
# this is the name and version displayed in the SonarQube UI. Was mandatory prior to SonarQube 6.1.
sonar.projectName=My cool project
sonar.projectVersion=23

sonar.sources=src/main/java
sonar.tests=src/test/java
sonar.java.binaries=build/classes/java/main
sonar.java.libraries=../lib/**/*.jar
sonar.java.test.libraries=../lib/**/*.jar
sonar.junit.reportPaths=build/test-results/test/
sonar.jacoco.reportPaths=build/jacoco/test.exec

sonar.modules=application,my_library,my_tools

# Encoding of the source code. Default is default system encoding
sonar.sourceEncoding=UTF-8
sonar.java.source=1.8

sonar.links.ci=http://${my_jenkins}/view/job/MyCoolProject
sonar.links.issue=http://${my_jira}/browse/MYPROJ

After we have done that we can submit our project to the SonarQube scanner using the jenkins SonarQube plugin and its “Execute SonarQube Scanner” build step.

Optional: Adding code coverage to our build

Even our gradle-based projects aim to be self-contained. That means we usually do not use repositories like mavenCentral for our dependencies but store them all in a lib directory along the project. If we want to add code coverage to such a project we need to add jacoco in the version corresponding to the jacoco-gradle-plugin to our libs in build.gradle:

allprojects {
    apply plugin: 'java'
    apply plugin: 'jacoco'
    sourceCompatibility = 1.8

    jacocoTestReport {
        reports {
            xml.enabled true
        }
        jacocoClasspath = files('../lib/org.jacoco.core-0.7.9.jar',
            '../lib/org.jacoco.report-0.7.9.jar',
            '../lib/org.jacoco.ant-0.7.9.jar',
            '../lib/asm-all-5.2.jar'
        )
    }
}

Gotchas

Our jenkins build job consists of 2 steps:

  1. Execute gradle
  2. Submit project to SonarQube’s scanner

By default gradle stops execution on failure. That means later tasks like jacocoTestReport are not executed if a test fails. We need to invoke gradle with the --continue switch to always run all of our tasks.

Simple build triggers with secured Jenkins CI

The jenkins continuous integration (CI) server provides several ways to trigger builds remotely, for example from a git hook. Things are easy on an open jenkins instance without security enabled. It gets a little more complicated if you like to protect your jenkins build environment.

Git plugin notify commit url

For git there is the “notifyCommitUrl” you can use in combination with the Poll SCM settings:

$JENKINS_URL/git/notifyCommit?url=http://$REPO/project/myproject.git

Note two things regarding this approach:

  1. The url of the source code repository given as a parameter must match the repository url of the jenkins job.
  2. You have to check the Poll SCM setting, but you do not need to provide a schedule

Another drawback is its restriction to git-hosted jobs.

Jenkins remote access api

Then there is the more general and more modern jenkins remote access api, where you may trigger builds regardless of the source code management system you use.
curl -X POST $JENKINS_URL/job/$JOB_NAME/build?token=$TOKEN

It allows even triggering parameterized builds with HTTP POST requests like:

curl -X POST $JENKINS_URL/job/$JOB_NAME/build \
--user USER:TOKEN \
--data-urlencode json='{"parameter": [{"name":"id", "value":"123"}, {"name":"verbosity", "value":"high"}]}'

Both approaches work great as long as your jenkins instance is not secured and everyone can do everything. Such a setting may be fine in your companies intranet but becomes a no-go in more heterogenious environments or with a public jenkins server.

So the way to go is securing jenkins with user accounts and restricted access. If you do not want to supply username/password as part of the url for doing HTTP BASIC auth and create users just for your repository triggers there is another easy option:

Using the Build Authorization Token Root Plugin!

Build authorization token root plugin

The plugin introduces a configuration setting in the Build triggers section to define an authentication token:

It also exposes a url you can access without being logged in to trigger builds just providing the token specified in the job:

$JENKINS_URL/buildByToken/build?job=$JOB_NAME&token=$TOKEN

Or for parameterized builds something like:

$JENKINS_URL/buildByToken/buildWithParameters?job=$JOB_NAME&token=$TOKEN&Type=Release

Conclusion

The token root plugin does not need HTTP POST requests but also works fine using HTTP GET. It does neither requires a user account nor the awkward Poll SCM setting. In my opinion it is the most simple and pragmatic choice for build triggering on a secured jenkins instance.

Using passwords with Jenkins CI server

For many of our projects the Jenkins continuous integration (CI) server is one important cornerstone. The well known “works on my machine” means nothing in our company. Only code in repositories and built, tested and packaged by our CI servers counts. In addition to building, testing, analyzing and packaging our projects we use CI jobs for deployment and supervision, too. In such jobs you often need some sort of credentials like username/password or public/private keys.

If you are using username/password they do not only appear in the job configuration but also in the console build logs. In most cases this is undesirable but luckily there is an easy way around it: using the Environment Injector Plugin.

In the plugin you can “inject passwords to the build as environment variables” for use in your commands and scripts.inject-passwords-configuration

The nice thing about this is that the passwords are not only masked in the job configuration (like above) but also in the console logs of the builds!inject-passwords-console-log

Another alternative doing mostly the same is the Credentials Binding Plugin.

There is a lot more to explore when it comes to authentication and credential management in Jenkins as you can define credentials at the global level, use public/private key pairs and ssh agents, connect to a LDAP database and much more. Just do not sit back and provide security related stuff plaintext in job configurations or your deployments scripts!

Integrating googletest in CMake-based projects and Jenkins

In my – admittedly limited – perception unit testing in C++ projects does not seem as widespread as in Java or the dynamic languages like Ruby or Python. Therefore I would like to show how easy it can be to integrate unit testing in a CMake-based project and a continuous integration (CI) server. I will briefly cover why we picked googletest, adding unit testing to the build process and publishing the results.

Why we chose googletest

There are a plethora of unit testing frameworks for C++ making it difficult to choose the right one for your needs. Here are our reasons for googletest:

  • Easy publishing of result because of JUnit-compatible XML output. Many other frameworks need either a Jenkins-plugin or a XSLT-script to make that work.
  • Moderate compiler requirements and cross-platform support. This rules out xUnit++ and to a certain degree boost.test because they need quite modern compilers.
  • Easy to use and integrate. Since our projects use CMake as a build system googletest really shines here. CppUnit fails because of its verbose syntax and manual test registration.
  • No external dependencies. It is recommended to put googletest into your source tree and build it together with your project. This kind of self-containment is really what we love. With many of the other frameworks it is not as easy, CxxTest even requiring a Perl interpreter.

Integrating googletest into CMake project

  1. Putting googletest into your source tree
  2. Adding googletest to your toplevel CMakeLists.txt to build it as part of your project:
    add_subdirectory(gtest-1.7.0)
  3. Adding the directory with your (future) tests to your toplevel CMakeLists.txt:
    add_subdirectory(test)
  4. Creating a CMakeLists.txt for the test executables:
    include_directories(${gtest_SOURCE_DIR}/include)
set(test_sources
# files containing the actual tests
)
add_executable(sample_tests ${test_sources})
target_link_libraries(sample_tests gtest_main)
  5. Implementing the actual tests like so (@see examples):
    #include "gtest/gtest.h"

TEST(SampleTest, AssertionTrue) {
    ASSERT_EQ(1, 1);
}

Integrating test execution and result publishing in Jenkins

  1. Additional build step with shell execution containing something like:
    cd build_dir && test/sample_tests --gtest_output="xml:testresults.xml"
  2. Activate “Publish JUnit test results” post-build action.

Conclusion

The setup of a unit testing environment for a C++ project is easier than many developers think. Using CMake, googletest and Jenkins makes it very similar to unit testing in Java projects.

Building Windows C++ Projects with CMake and Jenkins

An short and easy way to build Windows C++ Software with CMake in Jenkins (with the restriction to support Visual Studio 8).

The C++ programming environment where I feel most comfortable is GCC/Linux (lately with some clang here and there). In terms of build systems I use cmake whenever possible. This environment also makes it easy to use Jenkins as CI server and RPM for deployment and distribution tasks.

So when presented with the task to set up a C++ windows project in Jenkins I tried to do it the same way as much as possible.

The Goal:

A Jenkins job should be set up that builds a windows c++ project on a Windows 7 build slave. For reasons that I will not get into here, compatibility with Visual Studio 8 is required.

The first step was to download and install the correct Windows SDK. This provides all that is needed to build C++ stuff under windows.

Then, after installation of cmake, the first naive try looked like this (in an “execute Windows Batch file” build step)

cmake . -DCMAKE_BUILD_TYPE=Release

This cannot work of course, because cmake will not find compilers and stuff.

Problem: Build Environment

When I do cmake builds manually, i.e. not in Jenkins, I open the Visual Studio 2005 Command Prompt which is a normal windows command shell with all environment variables set. So I tried to do that in Jenkins, too:

call “c:\Program Files\Microsoft SDKs\Windows\v6.0\Bin\SetEnv.Cmd” /Release /x86

cmake . -DCMAKE_BUILD_TYPE=Release

This also did not work and even worse, produced strange (to me, at least) error messages like:

‘Cmd’ is not recognized as an internal or external command, operable program or batch file.

The system cannot find the batch label specified – Set_x86

After some digging, I found the solution: a feature of windows batch programming called delayed expansion, which has to be enabled for SetEnv.Cmd to work correctly.

Solution: SetEnv.cmd and delayed expansion

setlocal enabledelayedexpansion

call “c:\Program Files\Microsoft SDKs\Windows\v6.0\Bin\SetEnv.Cmd” /Release /x86

cmake . -DCMAKE_BUILD_TYPE=Release

nmake

Yes! With this little trick it worked perfectly. And feels almost as with GCC/CMake under Linux:  nice, short and easy.

Your own CI-based RPM build farm, part 3

In my previous post we learned how to build RPM packages of your software for multiple versions of your target distribution(s). Now I want to present a way of automating the build process and building packages on/for all target platforms. You should have a look at the openSUSE build service to see if it already fits your needs. Then you can stop reading here :-).

We needed better control over the platforms and the process, so we setup a build farm based on the Jenkins continuous integration (CI) server ourselves. The big picture consists of the following components:

  • build slaves allowing a jenkins user to do unattended builds of the packages
  • Jenkins continuous integration server using matrix builds with build slaves for each target platform
  • build script orchestrating the build of all our self-maintained packages
  • jenkins job to deploy the packages to our RPM repository

Preparing the build slaves

Standard installations of openSUSE need some minor tweaks so they can be used as Jenkins build slaves doing unattended RPM package builds. Here are the changes we needed to make it work properly:

  1. Add a user account for the builds, e.g. useradd -m -d /home/jenkins jenkins and setup a password with passwd jenkins.
  2. Change sshd configuration to allow password authentication and restart sshd.
  3. We will link the SOURCES and SPECS directories of /usr/src/packages to the working copy of our repository, so we need to delete the existing directories: rm -r /usr/src/packages/SPECS /usr/src/packages/SOURCES /usr/src/packages/RPMS /usr/src/packages/SRPMS.
  4. Allow non-priviledged users to work with /usr/src/packages with chmod -R o+rwx /usr/src/packages.
  5. Copy the ssh public key for our git repository to the build account in ~/.ssh/id_rsa
  6. Test ssh access on the slave as our build user with ssh -v git@repository. With this step we confirm the host authenticity one time so that future public key ssh interactions work unattended!
  7. Configure git identity on the slave with git config --global user.name "jenkins@build###-$$"; git config --global user.email "jenkins@buildfarm.myorg.net".
  8. Add privileges for the build user needed for our build process in /etc/sudoers: jenkins ALL = (root) NOPASSWD:/usr/bin/zypper,/bin/rpm

Configuring the build slaves

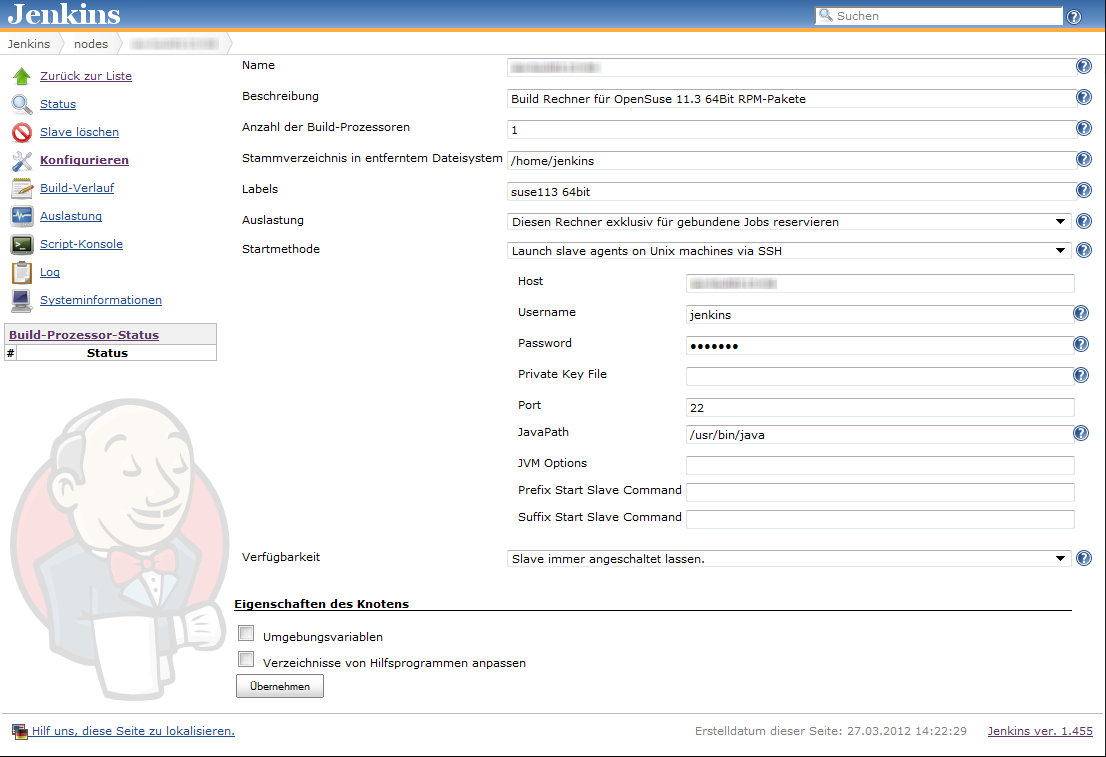

Linux build slaves over ssh are quite easily configured using Jenkins’ web interface. We add labels denoting the distribution release and architecture to be easily able to setup our matrix builds. Then we setup our matrix build as a new job with the usual parameters for source code management (in our case git) etc.

Our configuration matrix has the two axes Architecture and OpenSuseRelease and uses the labels of the build slaves. Our only build step here is calling the script orchestrating the build of our rpm packages.

Putting together the build script

Our build script essentially sets up a clean environment, builds package after package installing build prerequisites if needed. We use small utility functions (functions.sh) for building a package, installing packages from repository, installing freshly built packages and removing installed RPM. The script contains roughly the following phases:

  1. Figure out some quirks about the environment, e.g. openSUSE release number or architecture to build.
  2. Clean the environment by removing previously installed self-built packages.
  3. Setting up the build environment, e.g. linking folder from /usr/src/packages to our working copy or installing compilers, headers and the like.
  4. Building the packages and installing them locally if they are a dependency of packages yet to be built.

Here is a shortened example of our build script:

#!/bin/bash

RPM_BUILD_ROOT=/usr/src/packages
if [ "i686" = `uname -m` ]
then
  ARCH=i586
else
  ARCH=`uname -m`
fi
SUSE_RELEASE=`cat /etc/SuSE-release | sed '/^[openSUSE|CODENAME]/d' | sed 's/VERSION =//g' | tr -d '[:blank:]' | sed 's/\.//g'`

source functions.sh

# setup build environment
ensureDirectoryLinks
# force a repository refresh without checking the signature
sudo zypper -n --no-gpg-checks refresh -f OUR_REPO
# remove previously built and installed packages
removeRPM libomniORB4.1
removeRPM omniNotify2
# install needed tools
installFromRepo c++-compiler
if [ $SUSE_RELEASE -lt 121 ]
then
  installFromRepo java-1_6_0-sun-devel
else
  installFromRepo jdk
fi
installFromRepo log4j
buildRPM omniORB
installRPM $ARCH/libomniORB4.1
installRPM $ARCH/omniORB-devel
installRPM $ARCH/omniORB-servers
buildAndInstallRPM omniNotify2 $ARCH

Deploying our packages via Jenkins

We setup a second Jenkins job to deploy successfully built RPM packages to our internal repository. We use the Copy Artifacts plugin to fetch the rpms from our build job and put them into a directory like all_rpms. Then we add a build step to execute a script like this:

for i in suse-12.1 suse-11.4 suse-11.3
do
  rm -rf $i
  mkdir -p $i
  versionlabel=`echo $i | sed 's/[-\.]//g'`
  cp -r "all_rpms/Architecture=32bit,OpenSuseRelease=$versionlabel/RPMS" $i
  cp -r "all_rpms/Architecture=64bit,OpenSuseRelease=$versionlabel/RPMS" $i
  cp -r "all_rpms/Architecture=64bit,OpenSuseRelease=$versionlabel/SRPMS" $i
  rsync -e "ssh" -avz $i/* root@rpmrepository.intranet:/srv/www/htdocs/OUR_REPO/$i/
  ssh root@rpmrepository.intranet "createrepo /srv/www/htdocs/OUR_REPO/$i/RPMS"

Summary

With a setup like this we can perform an automatic build of all our RPM packages on several targetplatform everytime we update one of the packages. After a successful build we can deploy our new packages to our RPM repository making them available for our whole organisation. There is an initial amount of work to be done but the rewards are easy, unattended package updates with deployment just one button click away.

Clean Code OSX / Cocoa Development – Setting up CI and unit testing

To start with the tool chain used by clean code development you need a continuous integration server.
Here we install Jenkins on OS X (Lion) for Cocoa development (including unit testing of course).

Prerequisites: Xcode 4 and Java 1.6 installed

To start with the tool chain used by clean code development you need a continuous integration server.
Here we install Jenkins on OS X (Lion) for Cocoa development (including unit testing of course).

Installing Jenkins

Installing Jenkins is easy if you have homebrew installed:

brew update
brew install jenkins

and start it:

java -jar /usr/local/Cellar/jenkins/1.454/lib/jenkins.war

Open your browser and go to http://localhost:8080.

Installing the Xcode plugin

Click on Manage Jenkins -> Manage Plugins
and install the following plugins:

  • Git plugin
  • Xcode plugin (not the SICCI one)

Setup Job

On the Jenkins start page navigate to New Job -> Freestyle

Choose Git as your Version control system (or what is appropriate for you). If you want to run a local git build use a file URL, supposing your project is in a directory named MyProject inside your home directory the URL would look like:

file://localhost//Users/myuser/MyProject/

Add a Xcode build step under Build -> Add build step -> Xcode
and enter your main target (which is normally your project name)
Target: MyProject
Configuration: Debug

If you got Xcode 4.3 installed you may run into

error: can't exec '/Developer/usr/bin/xcodebuild' (No such file or directory)

First you need to install the Command Line Tools Xcode 4 via Downloads Preference Pane in Xcode (you need a developer account) and run

sudo xcode-select -switch /Applications/Xcode.app/Contents/Developer

Done!
Now you can build your project via Jenkins.

GHUnit Tests

Since we want to do clean code development we need unit tests. Nowadays you have two options: OCUnit or GHUnit. OCUnit is baked into Xcode right from the start and for using it in Jenkins you just create an additional build step with your unit testing target. So why use GHUnit (besides having a legacy project using it)? For me GHUnit has one significant advantage over OCUnit: you can run an individual test. And with some additions and tweaks you have support in Xcode, too.

So if you want to use GHUnit start with installing the Xcode Templates.
In Xcode you select your targets and create a new target via New Target -> Add Target -> GHUnit -> GHUnit OSX Test Bundle with OCMock
This creates a new directory. If you use automatic reference counting (ARC), replace GHUnitTestMain.m with the one from Tae

Copy RunTests.sh into UnitTests/Supported Files which copies the file into your UnitTests directory. Make it executable from the terminal with

chmod u+x RunTests.sh

In Xcode navigate to your unit test target and in Build Phases add the following under Run Script

$TARGETNAME/RunTests.sh

In Jenkins add a new Xcode build step to your job with Job -> Configure -> Add Build Step -> Xcode
Enter your unit test target into the Target field, set the configuration to Debug and add the follwing custom xcodebuild arguments:

GHUNIT_CLI=1 GHUNIT_AUTORUN=1 GHUNIT_AUTOEXIT=1 WRITE_JUNIT_XML=YES

At the time of this writing there exists a bug that the custom xcodebuild arguments are not persisted after the first run.

At the bottom of the page check Publish JUnit Test Report and enter

build/test-results/*.xml.

Ready to start!

Breakpad and Your CI – A Strong Team

Google’s breakpad together with your CI system can prepare you for the worst.

If your C++ software has to run 24/7 on some server rack at your customer’s data center, it has to meet not only all the user requirements, but also requirements that come from you as developer. When your customer calls you about some “problems”, “strange behaviours”, or even crashes, you must be able to detect what went wrong. Fast!

One means to this end is of course logging. But if your application crashes, nothing beats a decent stacktrace 🙂

Google’s breakpad library comes in very handy here because it provides very easy crash reporting. Even if your process has 2 gigs of virtual memory, breakpad shrinks that ‘core dump’ down to a couple of megs.

Breakpad pulls that trick off by using so-called symbol files that you have to generate for each compiled binary (executable or shared library). These symbol files together with the breakpad dump file that is created at crash time are then used to recreate the stacktrace.

Because every compilation creates different binaries, dump file and symbol files need to be ‘based on’ exactly the same binaries.

This is where you can let your CI system do some work for you. At one of our customers we use Jenkins not only for the usual automatic builds and tests after each check-in but also for release builds that go into production.

At the end of each build, breakpad’s symbol dumper runs over all compiled executables and libraries and generates the symbol files. These are then archived together with the compiled binaries.

Now we are prepared. Whenever some customer sends us a dump file, we can just easily pull out the symbol files corresponding to the software version that runs at this customer and let breakpad do its magic…
