Unit-Testing Deep-Equality in C#

In the suite of redux-style applications we are building in C#, we are making extensive use of value-types, which implies that a value compares as equal exactly if all of its contents are equal also known as “deep equality”, as opposed to “reference equality” or “shallow equality”. Both of those imply deep equality, but the other way around is not true. The same object is of course equal to itself, not matter how deep you look. And an object that references the same data as another object also has equal content. But a simple object that contains different lists with equal content will be unequal under shallow comparison, but equal under deep comparison.

Though init-only records already provide a per-member comparison as Equals be default, this fails for collection types such as ImmutableList<> that, against all intuition but in accordance to , only provide reference-equality. For us, this means that we have to override Equals for any value type that contains a collection. And this is were the trouble starts. Once Equals is overridden, it’s extremely easy to forget to also adapt Equals when adding a new property. Since our redux-style machinery relies on a proper “unequal”, this would manifest in the application as a sporadically missing UI update.

So we devised a testing strategy for those types, using a little bit of reflection:

  1. Create a sample instance of the value type with no member retaining its default value
  2. Test, by going over all properties and comparing to the same property in a default instance, if indeed all members in the sample are non-default
  3. For each property, run Equals the sample instance to a modified sample instance with that property set to the value from a default instance.

If step 2 fails, it means there’s a member that’s still at its default value in the sample instance, e.g. the test wasn’t updated after a new property was added. If step 3 fails, the sample was updated, but the new property is not considered in Equals – and it can even tell which property is missing.

The same problems of course arise with GetHashCode, but are usually less severe. Forgetting to add a property just makes collisions more likely. It can be tested much in the same way, but can potentially lead to false positives: collisions can occur even if all properties are correctly considered in the function. In that case, however, the sample can usually be altered to remove the collision – and it is really unlikely. In fact, we never had a false positive.

Fun with docker container environment variables

Docker (as one specific container technology product) is a basic ingredient of our development infrastructure that steadily gained ground from the production servers over the build servers on our development machines. And while it is not simple when used for operations, the complexity increases a lot when used for development purposes.

One way to express complexity is by making the moving parts configurable and using different configurations. A common way to make things configurable with containers are environment variables. Running a container might look like a endurance typing contest if used extensibly:

docker run --rm \
-e POSTGRES_USER=myuser \
-e POSTGRES_PASSWORD=mysecretpassword \
-e POSTGRES_DB=mydatabase \
-e PGDATA=/var/lib/postgresql/data/pgdata \
ubuntu:22.04 env

This is where our fun begins.

Using an env-file for extensive configurations

The parameter –env-file reads environment variables from a local text file with a simple key=value format:

docker run --rm --env-file my-vars.env ubuntu:22.04 env

The file my-vars.env contains all the variables line by line:

FIRST=1
SECOND=2

If we run the command above in a directory containing the file, we get the following output:

PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
HOSTNAME=46a23b701dc8
FIRST=1
SECOND=2
HOME=/root

The HOSTNAME might vary, but the FIRST and SECOND environment variables are straight from our file.

The only caveat is that the env-file really has to exist, or we get an error:

docker: open my-vars2.env: Das System kann die angegebene Datei nicht finden.

My beloved shell

The env-file can be empty, contain only comments (use # to begin them) or whitspace, but it has to be present.

Please be aware that the env-files are different from the .env-file(s) in docker-compose. A lot of fun is lost by this simple statement, like variable expansion. As far as I’m aware, there is no .env-file mechanism in docker itself.

But we can have some kind of variable substitution, too:

Using multiple env-files for layered configurations

If you don’t want to change all your configuration entries all the time, you can layer them. One layer for the “constants”, one layer for global presets and one layer for local overrides. You can achieve this with multiple –env-files parameters, they are evaluated in your specified order:

docker run -it --rm --env-file first.env --env-file second.env ubuntu:22.04 env

Let’s assume that the content of first.env is:

TEST=1
FIRST=1

And the content of second.env is:

TEST=2
SECOND=2

The results of our container call are (abbreviated):

TEST=2
FIRST=1
SECOND=2

You can see that the second TEST assignment wins. If you switch the order of your parameters, you would read TEST=1.

Now imagine that first.env is named global.env and second.env is named local.env (or default.env and development.env) and you can see how this helps you with modular configurations. If only the files need not to exist all the time, it would even fit well with git and .gitignore.

The best thing about this feature? You can have as many –env-file parameters as you like (or your operating system allows).

Mixing local and configured environment variables

We don’t have explicit variable expansion (like TEST=${FIRST} or something) with –env-files, but we have a funny poor man’s version of it. Assume that the second.env from the example above contains the following entries:

OS
TEST=2
SECOND=2

You’ve seen that right: The first entry has no value (and no equal sign)! This is when the value is substituted from your operating system:

TEST=2
FIRST=1
OS=Windows_NT
SECOND=2

By just declaring, but not assigning an environment variable it is taken from your own environment. This even works if the variable was already assigned in previous –env-files.

If you don’t believe me, this is a documented feature:

If the operator names an environment variable without specifying a value, then the current value of the named variable is propagated into the container’s environment

https://docs.docker.com/engine/reference/run/#env-environment-variables

And even more specific:

When running the command, the Docker CLI client checks the value the variable has in your local environment and passes it to the container. If no = is provided and that variable is not exported in your local environment, the variable won’t be set in the container.

https://docs.docker.com/engine/reference/commandline/run/#set-environment-variables–e—env—env-file

This is a cool feature, albeit a little bit creepy. Sadly, it doesn’t work in all tools that allow to run docker containers. Last time I checked, PyCharm omitted this feature (as one example).

Epilogue

I’ve presented you with three parts that can be used to manage different configurations for docker containers. There are some pain points (non-optional file existence, feature loss in tools, no direct variable expansion), but also a lot of fun.

Do you know additional tricks and features in regard to environment variables and docker? Comment below or link to your article.

Create custom jre in Docker

I recently wrote a Java application and wanted to run it in a Docker container. Unfortunately, my program needs a module from the Java jdk, which is why I can’t run it in the standard jre. When I run the program with the jdk, everything works but I have much more than I actually need and a 390MB docker container.

That’s why I set out to build my own jre, cut-down exactly to my application needs.

For this I found two Gradle plugins that help me. Jdeps checks the dependencies of an application and can summarise them in a file. This file can be used as input for the Jlink plugin. Jlink builds its own jre from it.

In the following I will present a way to build a custom jre with gradle and the two plugins in a multistage dockerfile and run an application in it.

Configuration in Gradle

First we need to do some configuration in gradle.build file. To use jdeps, the application must be packaged as an executable jar file and all dependencies must be copied in a seperate folder . First we create a task that copies all current dependencies to folder named lib. For the jar, we need to define the main class and set the class path to search for all dependencies in the lib folder.

// copies all the jar dependencies of your app to the lib folder
task copyDependencies(type: Copy) {
    from configurations.runtimeClasspath
    into "$buildDir/lib"
}

jar {
    manifest {
        attributes["Main-Class"] = "Main"
        attributes["Class-Path"] = configurations.runtimeClasspath
            .collect{'lib/'+it.getName()}.join(' ')
    }
}

Docker Image

Now we can get to work on the Docker image.

As a first step, we build our jre in a Java jdk. To do this, we run the CopyDependencies task we just created and build the Java application with gradle. Then we let jdeps collect all dependencies from the lib folder.
The output is written to the file jre-deps.info. It is therefore important that no errors or warnings are output, which is set with the -q parameter. The print-module-deps is crucial so that the dependencies are output and saved in the file.

The file is now passed to jlink and a custom-fit jre for the application is built from it. The parameters set in the call also reduce the size. The settings can be read in detail in the plugin documentation linked above.

FROM eclipse-temurin:17-jdk-alpine AS jre-build

COPY . /app
WORKDIR /app

RUN chmod u+x gradlew; ./gradlew copyDependencies; ./gradlew build

# find JDK dependencies dynamically from jar
RUN jdeps \
--ignore-missing-deps \
-q \
--multi-release 17 \
--print-module-deps \
--class-path build/lib/* \
build/libs/app-*.jar > jre-deps.info

RUN jlink \
--compress 2 \
--strip-java-debug-attributes \
--no-header-files \
--no-man-pages \
--output jre \
--add-modules $(cat jre-deps.info)

FROM alpine:3.17.0
WORKDIR /deployment

# copy the custom JRE produced from jlink
COPY --from=jre-build /app/jre jre
# copy the app dependencies
COPY --from=jre-build /app/build/lib/* lib/
# copy the app
COPY --from=jre-build /app/build/libs/app-*.jar app.jar

# run in user context
RUN useradd schneide
RUN chown schneide:schneide .
USER schneide

# run the app on startup
CMD jre/bin/java -jar app.jar

In the second Docker stage, a smaller image is used and only the created jre, the dependencies and the app.jar are copied into it. The app is then executed with the jre.

In my case, I was able to reduce the Docker container size to 110 MB with the alpine image, which is less than a third. Or, using a ubuntu:jammy image, to 182 MB, which is also more than half.

Using custom Docker containers for development with WebStorm & Co.

Docker has become one of the go-to tools of many developers these days. Not because any project should implement as many technological buzz words per se, but due to their great deal of flexibility compared with their small hassle of setup.

For stuff like node-based applications, using a Dev Container is useful because in principle, you do not need to have any of the npm stuff on your actual machine – not only you avoid having these monstrous node_modules folders, but also avoid having accidental dependencies on some specific configuration that might hold true on your device, but not generally.

For some of these reasons probably, JetBrains included Docker Dev Containers as a kind of “remote” development. In a sense, a docker container can be thought of as a remote machine, regardless of the fact that it shares your local hardware and is just a software abstraction.

In my opinion, JetBrains usually does great software, but there is some weird behaviour in their usage of Docker Dev Containers and it took us a while to find a quite general and IDE-independent solution; I’ll just use WebStorm as an example of something that appeared unusually hard to tame. I guess it will become better eventually.

For now, one might think of using the built-in config like:

  1. New Run Configuration -> npm
  2. Node Interpreter: “…”
  3. “+” -> Add Remote… -> “Docker”
  4. Use an image of your choice, either one of the node base images or a custom one (see below) with its corresponding tag

Now for reasons that seem to be completely undocumented and unavoidable (tell me if you know more!), the IDE forces you to then mount your project to /opt/project inside this container, where it gets mirrored during runtime to somewhere /tmp/<temporary uuid>/ – and in several of our projects (due to our folder structure which is not even particularly abnormal) this made this option to be completely unusable.

The way one can work without these strange idiosyncrasies is as follows:

First, create a Dockerfile in which you do all the required setup. It might be an optional idea to set the user, away from “root” to something more restricted like “node” (even though in development, you probably have your eyes on everything nevertheless). You can do more custom setup here. This can look like

FROM node:16.18.0-bullseye-slim

WORKDIR /your-home-inside-container
RUN chown node .

COPY package.json package-lock.json /your-home-inside-container

USER node

RUN npm ci --ignore-scripts

# COPY <whatever you might want> <where you want it inside>

EXPOSE 3000

CMD npm start

From that Dockerfile, build a local image in the same folder like:

# you might need -f if the Dockerfile is not named "Dockerfile"
docker build -t your-dev-image .

Then, create a new Run Configuration but choose “Shell script” (not npm)

docker run -it --rm --entrypoint= -v ${PWD}/src:/your-home-inside-container/src -p 0.0.0.0:3000:3000 your-dev-image

You might use a different “-p” port forwarding if you do not want to have your development server broadcasting on port 3000 (another advantage of Dev Containers, you can easily run multiple instances on different ports).

This is about the whole magic. But there are two further things that could be important here:

Hot Reloading (live updating whenever source files change)

This is done rather easily, however seems to change once in a while. We figured out that at least if you are using react-scripts@5.0.1 (which is what “npm start” addresses, unless you do that differently), you just need to set the environment variable “WATCHPACK_POLLING=true”. I.e put that in your Dockerfile a

ENV WATCHPACK_POLLING true

or pass it into your docker run ... -e WATCHPACK_POLLING=true ... your-dev-image line

Routing a development proxy to some “local host”

If your software e.g. adresses a backend that is running on your development machine or another Docker Dev Container, it can not just access that host from inside the Docker container. Neither is the port forwarding via “-p …:…” of any use, because that addresses the other direction – i.e. what port from the container is exposed to outside access – here, we go the other direction.

When the software inside the container would actually want to address “localhost”, it needs to be directed at the host under which your local machine appears. Docker has a special hostname for that and it is host.docker.internal

I.e. if your local backend is running on “localhost:8080” on your machine, you need to tell your Dev Container to direct its requests to “host.docker.internal:8080”.

In one of our projects, we needed some specific control over the proxy that the React development server gives you and here is way to gain that control – add a “setupProxy.js” inside your src/ folder and put in it something like

const { createProxyMiddleware } = require('http-proxy-middleware');

module.exports = function(app) {
    if (process.env.LOCAL_DEVELOPMENT) {
        return;
    }

    let httpProxyMiddleware = createProxyMiddleware({
        target: process.env.REACT_APP_PROXY || 'http://localhost:8080',
        changeOrigin: true,
    });
    app.use('/api', httpProxyMiddleware); // change to your needs accordingly
};

This way, one can always change the address via setting a REACT_APP_PROXY environment variable as in the step above; and one can also disable the whole proxying by setting the LOCAL_DEVELOPMENT env variable to true. Name these as you like, and you can even extend this setupProxy to include web sockets or different proxies for different routes, if you have any questions on that, just comment below 🙂

Docker Interpreter with Environment Variables in RubyMine

As you know from previous blog entries, we now rely on Docker dev containers as interpreters for our IDEs. This has the advantage that we don’t need local installations of for example Ruby or single packages, but all requirements are in a Docker container and our machine stays clean.
RubyMine has some pitfalls for this way. So in this blog post, I’ll present you some hard-won insights and show you what solution we came to.

Those were our first problems:

  1. When using a single Docker image as an interpreter, it does not clean up everything when exiting the application and container. For example, the Server.pids file remains on the local machine, resulting in the following error: “A server is already running. Check path/Pids/Server.pids.” This behavior can be worked around with a Before Launch script that deletes the file when the application starts, but it’s not very nice. RubyMine unfortunately does not have Docker Container Settings, different to other Jetbrain IDEs, so a simple –rm does not work.
  2. Furthermore, we need to talk to our local machine from our Docker container, for example to access a DB or to use a VPN tunnel originating from the local machine. For this, the Docker container needs to know my IP address, or the respective IP address of each developer. In our version control system, however, we don’t want to constantly overwrite the IP addresses or check before each push that you don’t accidentally write up your own IP address. Our wish was to have a local environment variable MY_MACHINE_IP where each developer writes their IP address and the Docker container fetches it when the program starts. The normal integration of the system environment variables by simply checking this option unfortunately does not work here when we start the program in Docker. This is because the IDE then integrates the environment variables of the Docker container and not those of my local machine. Also, using a local environment variable to pass it to Docker doesn’t work in Run Configuration, nor in Docker Image creation, as the images below show. Same if you want to use PATH variables of the IDE instead of environment variables.

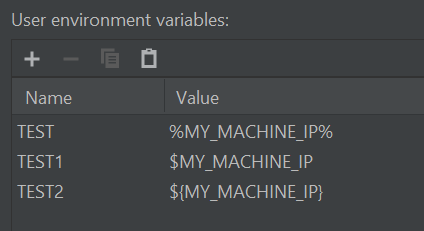

Environment Settings in Run Configuration
Environments in Dev Container

Our solution – Docker Compose:

Our first problem is solved by using docker compose directly. The problem with the Server.pid does not occur, because RubyMine manages the Docker Compose better and removes the Server.pid automatically at startup.

Below, I explain our setup of a Docker Compose as an interpreter and how it solved all the problems.

We created a simple Docker Compose yaml with the image we want to use as an interpreter. At this point, you can also define environment variables that use local environment variables of your local machine. This solves our second problem.

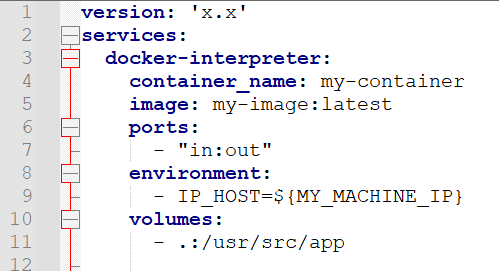

Docker Compose yaml

The definition of the volume is important at this point. Docker tries to store things there during the installation and throws an internal server error if the volume is missing:
Error response from daemon: the working directory ‘C:\repositories\my-project’ is invalid, it needs to be an absolute path.

Now an interpreter can be set up in RubyMine. To do this, a new remote interpreter must be created in the Settings under Language & Frameworks: Ruby SDK and Gems. An example is shown in the figure below:

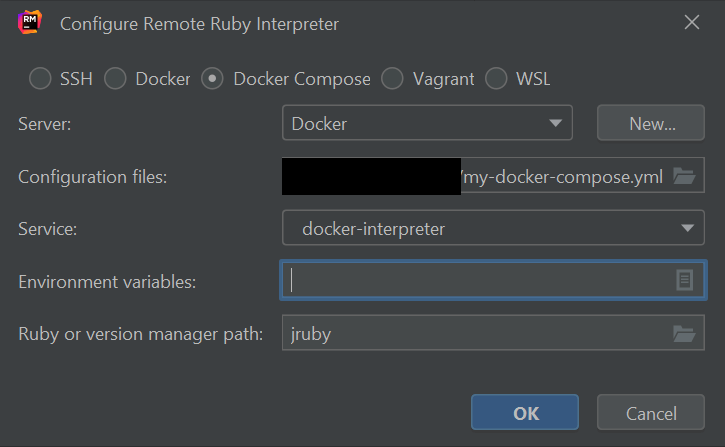

Ruby Docker Compose Interpreter

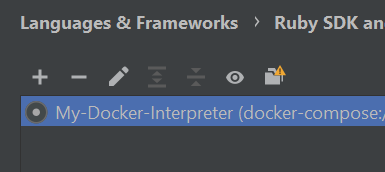

It is important here to select the interpreter after this, otherwise you will not be able to save and will get an error that the project has no interpreter.

Now the interpreter can be stored in the run configuration.

Recap:

We are now able to run our Ruby environment in a Docker container. Thus, the environment is independent of the local circumstances such as the installed Ruby version or packages, as these can all be found in the container. Also, each programmer can run the project locally without any further adjustments via a defined environment variable and the Docker container can still talk to other local Docker containers on the machine. Thus, the status in Gitlab is generally valid and not bound to the respective programmer by a customizable IP or the like.

The layer cake approach: Docker multi-stage builds and Dev containers

One recent feature that has the ability to change the way developers work on their local machines are dev containers. In short, a dev container is a docker container that provides a working environment for a specific project and can be used by the IDE to develop the project without ever installing anything on the developer machine except the IDE, docker and git. It is especially interesting if you switch between projects with different ecosystems or the same ecosystem in different version often.

Most modern IDEs support dev containers, even if it still feels a bit unpolished in some implementations. In my opinion, the advantages of dev containers outweigh the additional complexity. The main advantage is the guarantee that all development systems are set up correctly and in sync. Our instructions to set up projects shrank from a lengthy wiki page to four bullet points that are essentially the same process for all projects.

But one question needs to be answered: If you have a docker-based build and perhaps even a docker-based delivery and operation, how do you keep their Dockerfiles in sync with your dev container Dockerfile?

My answer is to not split the project’s Dockerfiles, but layer them in one file as a multi-stage build. Let’s view the (rather simple) Dockerfile of one small project:

# --------------------------------------------
FROM python:3.10-alpine AS project-python-platform

COPY requirements.txt requirements.txt
RUN pip3 install --upgrade pip
RUN pip3 install --no-cache-dir -r requirements.txt

# --------------------------------------------
FROM project-python-platform AS project-application

WORKDIR /app

# ----------------------
# Environment
# ----------------------
ENV FLASK_APP=app
# ----------------------

COPY . .

CMD python -u app.py

The interesting part is introduced by the horizontal dividers: The Dockerfile is separated into two parts, the first one called “project-python-platform” and the second one “project-application”.

The first build target contains everything that is needed to form the development environment (python and the project’s requirements). If you build an image from just the first build target, you get your dev container’s image:

docker build --pull --target project-python-platform -t dev-container .

The second build target uses the dev container image as a starting point and includes the project artifacts to provide an operations image. You can push this image into production and be sure that your development effort and your production experience are based on the same platform.

If you frowned because of the “COPY . .” line, we make use of the .dockerignore feature for small projects.

Combining multi-stage builds with dev containers keeps all stages of your delivery pipeline in sync, even the zeroth stage – the developer’s machine.

But what if you have a more complex scenario than just a python project? Let’s look at the Dockerfile of a python project with a included javascript/node/react sub-project:

# --------------------------------------------
FROM python:3.9-alpine AS chronos-python-platform

COPY requirements.txt requirements.txt

RUN pip3 install --upgrade pip
RUN pip3 install --no-cache-dir -r requirements.txt

# --------------------------------------------
FROM node:16-bullseye AS chronos-node-platform

COPY chronos_client/package.json .
COPY chronos_client/package-lock.json .

RUN npm -v
RUN npm ci --ignore-scripts

# --------------------------------------------
FROM chronos-node-platform AS chronos-react-builder

COPY chronos_client .

# build the client javascript application
RUN npm run build

# --------------------------------------------
FROM chronos-python-platform AS chronos-application

WORKDIR /app

COPY . .

# set environment variables
ENV ZEITGEIST_PASSWORT=''

COPY --from=chronos-react-builder /build ./chronos_client/build

CMD python -u chronos.py

It is the same approach, just more layers on the cake, four in this example. There is one small caveat: If you want to build the “chronos-node-platform”, the preceding “chronos-python-platform” gets built, too. That delays things a bit, but only once in a while.

The second to last line might be interesting if you aren’t familiar with multi-stage builds: The copy command takes compiled files from the third stage/layer and puts them in the final layer that is the operations image. This ensures that the compiler is left behind in the delivery pipeline and only the artifacts are published.

I’m sure that this layer cake approach is not feasible for all project setups. It works for us for small and medium projects without too much polyglot complexity. The best aspect is that it separates project-specific knowledge from approach knowledge. The project-specific things get encoded in the Dockerfile, the approach knowledge is the same for all projects and gets documented in the Wiki – once.

Running Tango-Servers in Docker

Containers are a great way of running your software in an environment that you defined and no one else needs to maintain of even know about. This is especially true if your software provides its service using a network port. All that operators have to provide is the execution platform for the container and the required resources.

Tango servers fit quite well into this type of software: Essentially they provide a service over the network. Unfortunately, they need a tango control system to be fully usable, so thats some other services. Luckily, there are docker images for this so building a stack of containers to run your Tango server in the scope of a control system is quite easy (sample docker-compose.yml):

version: '3.7'
services:
  my-tango-server:
    container_name: my-tango-server
    image: my-ts
    environment:
      - TANGO_HOST=tango-cs:10000
    depends_on:
      - tango-cs
  tango-cs:
    container_name: tango-database
    image: tangocs/tango-cs:9.3.2-alpha.1-no-tango-test
    ports:
      - "10000:10000"
    environment:
      - TANGO_HOST=localhost:10000
      - MYSQL_HOST=tango-db:3306
      - MYSQL_USER=tango
      - MYSQL_PASSWORD=tango
      - MYSQL_DATABASE=tango
    links:
      - "tango-db:localhost"
    depends_on:
      - tango-db
  tango-db:
    container_name: mysql-database
    image: tangocs/mysql:9.2.2
    environment:
      - MYSQL_ROOT_PASSWORD=root
    volumes:
      - tango_mysql_data:/var/lib/mysql
volumes:
  tango_mysql_data:

Example Dockerfile for the image my-ts used for the my-tango-server container:

FROM debian:buster

WORKDIR /tango-server
COPY ./my-tango-server .

RUN DEBIAN_FRONTEND=noninteractive apt-get install -y ./*.deb

CMD my-tango-server myts

Unfortunately this naive approach has the following issues:

  • The network port of our tango server changes with each restart and is not available from outside the docker stack
  • The tango server communicates the internal IP-Address of its container to the tango database so connection attempts from the outside fail even if the port is correct
  • Even though the tango server container depends on the tango control system container the tango server might start up before the tango control system is available.

Let us tackle the issues one by one.

Expose a fixed port for the Tango server

This is probably the easiest issue to fix because it is well documented for OmniORB and widely used. So let us change docker-compose.yml to expose a port and pass it into the container as an environment variable:

version: '3.7'
services:
  my-tango-server:
    container_name: my-tango-server
    image: my-ts
    ports:
      - "45450:45450"
   environment:
      - TANGO_HOST=tango-cs:10000
      - TANGO_SERVER_PORT=45450
    depends_on:
      - tango-cs
  tango-cs:
 ...

And use it in our Dockerfile for the my-ts image:

FROM debian:buster

WORKDIR /tango-server
COPY ./my-tango-server .

RUN DEBIAN_FRONTEND=noninteractive apt-get install -y ./*.deb

CMD my-tango-server myts -ORBendPoint giop:tcp::$TANGO_SERVER_PORT

Fine, now our Tango server always listens on a defined port and that same port is exposed to the outside of our docker stack.

Publish the correct IP/hostname of the Tango server

I found it hard to find documentation about this and how to put it on the command line correctly but here is the solution to the problem. The crucial command line parameter is -ORBendPointPublish . We need to pass a hostname of the host machine into the container and let OmniORB publish that name (tango-server.local in our example):

version: '3.7'
services:
  my-tango-server:
    container_name: my-tango-server
    image: my-ts
    ports:
      - "45450:45450"
   environment:
      - TANGO_HOST=tango-cs:10000
      - TANGO_SERVER_PORT=45450
      - TANGO_SERVER_PUBLISH=tango-server.local:45450
    depends_on:
      - tango-cs
  tango-cs:
 ...

And the corresponding changes to our Dockerfile:

FROM debian:buster

WORKDIR /tango-server
COPY ./my-tango-server .

RUN DEBIAN_FRONTEND=noninteractive apt-get install -y ./*.deb

CMD my-tango-server myts -ORBendPoint giop:tcp::$TANGO_SERVER_PORT -ORBendPointPublish giop:tcp:$TANGO_SERVER_PUBLISH

Waiting for availability of a service

This one is not specific to our tango server and the whole stack but a general problem when building stacks where one service depends on another one being up and listening on a network port. Docker compose takes care of the startup order of the containers but does not check for the readiness of services running in the containers. In linux containers this can easily be achieved by using the small shell utility wait-for-it. Here we only need to make some changes to our Dockerfile:

FROM debian:buster
RUN DEBIAN_FRONTEND=noninteractive apt-get update && apt-get install wait-for-it

WORKDIR /tango-server
COPY ./my-tango-server .

RUN DEBIAN_FRONTEND=noninteractive apt-get install -y ./*.deb

CMD wait-for-it $TANGO_HOST -- my-tango-server myts -ORBendPoint giop:tcp::$TANGO_SERVER_PORT -ORBendPointPublish giop:tcp:$TANGO_SERVER_PUBLISH

Depending on your distribution/base image installation of the tool (or other similar alternatives like dockerize or docker-compose-wait).

Summing it up

After moving some rocks out of the way it is dead easy to deploy your tango servers together with a complete tango control system to any host platform providing a container runtime. You do not need to delivery everything in one single stack if you do not want to. Most of the stuff described above works the same when deploying tango control system and tango servers in independent stacks or as separate containers even on multiple hosts.

The spell that reveals your onboarding decade

Every one of us has started somewhere. By telling you what my first computer was, I also convey a lot about the place and time my journey in IT started. For many of my fellows, it was a Commodore C64 or an Atari 500. But even if I don’t tell you about my first machine, there is a simple “magic spell” that you can cast to at least get a hint about the decade my first working days started, 15 years after my first contact with computers.

The spell is just one word: “container”. What a container is and how to use it is bound to the decades. Let me guide you through some typical answers.

Pre-2010 answer

If you entered the industry around the year 2000, a container was a big chunk of software that you preferably installed on an even bigger machine, the infamous “application server”. The container, or “servlet container”, “application container”, or, if you were with the right folks, “enterprise bean container” (in short: EJB-Container) was the central hub to host all of your web applications. If you deployed your application into the container, it handled the rest, like unpacking the web archive, providing resources and publishing to the internet. Typical names of containers were Tomcat, Jetty, JBoss or WildFly. You can probably see them around even today, because the concept itself is appealing. Some aspects of it inevitably lead to problems, though. Resource management was a big topic. Your application wasn’t expected to care for a database connection, a logging context or, sometimes, even security features, because the container provided those things to it. As you can probably imagine, that left your application crippled and unable to function outside a container.

Pre-2010 containers

So if you onboarded more than ten years ago, your first thoughts reacting to the word “container” will be “big machine”, “slow startup” and “logging framework”. There cannot reasonably be more than one container per machine. Maintaining a cluster of containers would be the work of luminaries. Being asked to start a container on your developer machine is a dreadful endeavour. “Booting the container” is a reason to visit the coffee machine.

Post-2010 answer

But if you started your career less than ten years ago, your reaction to the word “container” will be different. Starting in 2013, a technology named “Docker” reinvented an old practice to isolate processes and package them into a transport format. Simplified enough, a container is just the RAM-based projection of an application image. You boot a container by loading the image into RAM. That’s some of the fastest things you can do on a computer (not really, but it fits the story better). Even better, because each container ideally contains just one small application or part of it, you don’t boot one container per machine, you can run dozens at the same time. Each container brings everything it needs with it and only relies on three common external resources being provided: Networking, persistent storage and a facility to dump logging output.

Post-2010 containers

It is good practice to partition your application into several containers of the post-2010 kind. It is good practice to have them talk to each other over network, either real or simulated. The lines between actual computers get blurry real fast with this kind of containering.

As a youngster, your first thoughts reacting to the word “container” will be “just one?”, “scale up” and “log output management”. You see an opportunity to maintain a cluster of containers. Being asked to start a container on your developer machine is a no-brainer. “Booting the container” is a reason to automate your container infrastructure.

The reactions to the word “container” are very different, based on socialization period. In the old days, pre-2010 containers were boss fight adversaries. Nowadays, post-2010 containers are helpful spirits that just need to be controlled.

Post-2020 answer?

What better way to control the helpful spirits but to deploy them to an environment that handles unpacking, wiring, providing resources and publishing to the internet? Your application isn’t expected to care for topics like scalability, cluster robustness or load balancing. The environment, your container cluster platform, handles those things for you. There can only be one cluster platform per cloud. Being asked to start a cluster platform on your developer machine – well, that’s just not possible, sorry. Best we can do is a minified version of it. Our applications tend to function poorly outside a cluster platform.

As you hopefully can see, developers of all decades crave a thing they tend to call “container” that they can throw their software into to have it perform well without all the hassle of operations. But as soon as they give away responsibility for the environment, they also give away the possibility of comfortable “developer machine” operations. The goal is the same, just the technicality what exactly a “container” happens to be changes over time.

What is your “spell” that reveals a lot about the responder?

Docker runtime breaking your container

Docker (or container technology in general) is a great tool to clearly separate the concerns of developers and operations. We use it to simplify various tasks like building projects, packaging them for different platforms and deployment of our software onto the target machines like staging and production servers. All the specifics of the projects are contained and version controlled using the Dockerfiles and compose files.

Our operations only needs to provide some infrastructure able to build container images and run them. This works great most of the time and removes a lot of the friction between developers and operation where in the past snowflaky-servers needed to be setup and maintained. Developers often had to ask for specific setups and environments because each project had their own needs. That is all gone with this great container technology. Brave new world. Except when it suddenly does not work anymore.

Help, my deployment container stopped working!

As mentioned above we use docker to deploy our software to the target machines. These machines are often part of a corporate network protected by firewalls and only accessible using VPN. I already talked about how to use openvpn in a docker container for deployment. So the other day I was making a release of one of my long-running projects and pressing the deploy button for that project on our jenkins continuous integration server.

But instead of just leaning back, relaxing and watching the magic work the deployment failed and the red light lit up! A look into the job output showed that the connection to the target machine was refused. A quick check from the developer machine showed no problem on the receiving side. VPN, target machine and everything was up and running as usual.

After a quick manual deployment performed with care and administrator hat I went on an investigation journey…

What was going on?

The deployment job did not change for several months, the container image did not change and the rest of the infrastructure was working as expected. After more digging, debugging narrowing down the problem I found out, that openvpn did not work in the container anymore because of some strange permission denied error:

Tue May 19 15:24:14 2020 /sbin/ip addr add dev tap0 1xx.xxx.xxx.xxx/22 broadcast 1xx.xxx.xxx.xxx
Tue May 19 15:24:14 2020 /sbin/ip -6 addr add 2axx:1xxx:4:5xxx:9xx:5xxx:5xxx:4xxx/64 dev tap0
RTNETLINK answers: Permission denied
Tue May 19 15:24:14 2020 Linux ip -6 addr add failed: external program exited with error status: 2
Tue May 19 15:24:14 2020 Exiting due to fatal error

This hot trace made it easy to google for and revealed following issue on github: https://github.com/dperson/openvpn-client/issues/75. The cause of all the trouble was changed behaviour of the docker runtime. Our automatic updates had run over the weekend and actually installed a new package version of the docker runtime (see exerpt from apt history log):

containerd.io:amd64 (1.2.13-1, 1.2.13-2)

This subtle change broke my container! After some sacrifices to the whale gods I went on to implement the fix. Fortunately there is an easy way to get it working like before. You just have to pass following command line switch to docker run and everything works as expected:

--sysctl net.ipv6.conf.all.disable_ipv6=0

As nice as containers are for abstracting away hardware, operating systems and other environment details sometimes the container runtime shines through. It is just a shame that such things happen on minor releases or package release upgrades…

Running a for-loop in a docker container

Docker is a great tool for running services or deployments in a defined and clean environment. Operations just has to provide a host for running the containers and everything else is up to the developers. They can forge their own environment and setup all the prerequisites appropriately for their task. No need to beg the admins to install some tools and configure server machines to fit the needs of a certain project. The developers just define their needs in a Dockerfile.

The Dockerfile contains instructions to setup a container in a domain specific language (DSL). This language consists only of a couple commands and is really simple. Like every language out there, it has its own quirks though. I would like to show a solution to one I encountered when trying to deploy several items to a target machine.

The task at hand

We are developing a distributed system for data acquisition, storage and real-time-display for one of our clients. We deliver the different parts of the system as deb-packages for the target machines running at the customer’s site. Our customer hosts her own debian repository using an Artifactory server. That all seems simple enough, because artifactory tells you how to upload new artifacts using curl. So we built a simple container to perform the upload using curl. We tried to supply the bash shell script required to the CMD instruction of the Dockerfile but ran into issues with our first attempts. Here is the naive, dysfunctional Dockerfile:

FROM debian:stretch
RUN DEBIAN_FRONTEND=noninteractive apt-get update &amp;&amp; apt-get -y dist-upgrade
RUN DEBIAN_FRONTEND=noninteractive apt-get update &amp;&amp; apt-get -y install dpkg curl

# Setup work dir, $PROJECT_ROOT must be mounted as a volume under /elsa
WORKDIR /packages

# Publish the deb-packages to clients artifactory
CMD for package in *.deb; do\n\
  ARCH=`dpkg --info $package | grep "Architecture" | sed "s/Architecture:\ \([[:alnum:]]*\).*/\1/g" | tr -d [:space:]`\n\
  curl -H "X-JFrog-Art-Api:${API_KEY}" -XPUT "${REPOSITORY_URL}/${package};deb.distribution=${DISTRIBUTION};deb.component=non-free;deb.architecture=$ARCH" -T ${package} \n\
  done

The command fails because the for-shell built-in instruction does not count as a command and the shell used to execute the script is sh by default and not bash.

The solution

After some unsuccessfull attempts to set the shell to /bin/bash using dockers’ SHELL instruction we finally came up with the solution for an inline shell script in the CMD instruction of a Dockerfile:

FROM debian:stretch
RUN DEBIAN_FRONTEND=noninteractive apt-get update && apt-get -y dist-upgrade
RUN DEBIAN_FRONTEND=noninteractive apt-get update && apt-get -y install dpkg curl

# Setup work dir, $PROJECT_ROOT must be mounted as a volume under /elsa
WORKDIR /packages

# Publish the deb-packages to clients artifactory
CMD /bin/bash -c 'for package in *.deb;\
do ARCH=`dpkg --info $package | grep "Architecture" | sed "s/Architecture:\ \([[:alnum:]]*\).*/\1/g" | tr -d [:space:]`;\
  curl -H "X-JFrog-Art-Api:${API_KEY}" -XPUT "${REPOSITORY_URL}/${package};deb.distribution=${DISTRIBUTION};deb.component=non-free;deb.architecture=$ARCH" -T ${package};\
done'

The trick here is to call bash directly and supplying the shell script using the -c parameter. An alternative would have been to extract the script into an own file and call that in the CMD instruction like so:

# Publish the deb-packages to clients artifactory
CMD ["deploy.sh", "${API_KEY}", "${REPOSITORY_URL}", "${DISTRIBUTION}"]

In the above case I prefer the inline solution because of the short and simple script, no need for an additional external file and worrying about how to pass the parameters to the script.
